NDX

Base Product
  • Available in:
  • Asia
  • Australia/New Zealand
  • EMEA
  • Latin America
  • North America

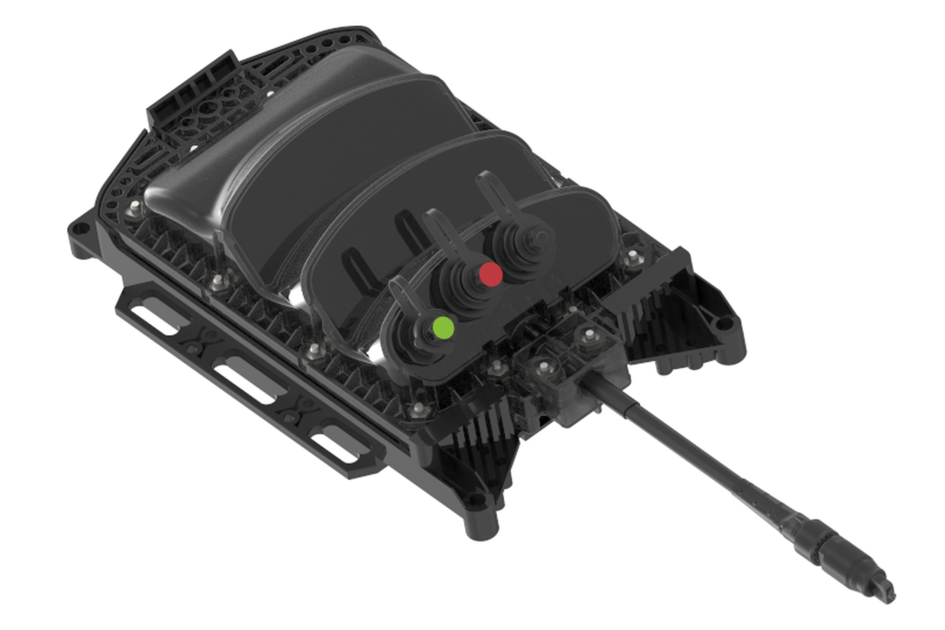

NDX Fiber Indexing Terminal, factory-sealed

Configure Product Variants
Find a Partner
Specifications
Finish making your selections or clear them to view relevant specifications.

Your web browser (Internet Explorer 11 or lower) is out of date and the functions below will not work with Internet Explorer.
Update your browser for more security, speed, functionality and experience on this site.

Update browser

Product Variants Show All Clear

Configure and display product variants of NDX by selecting options

Loading...
Features and Benefits
With innovative fiber indexing technology, the benefits of plug-and-play hardened connectivity are dramatically increased. Designed specifically for fiber indexing deployments, fiber indexing terminals (NDX) give providers pole, pedestal, or handhole mounting options, and are designed for quick and easy installation.

When deployed in a daisy-chain architecture, fiber indexing terminals have all the advantages of the access terminals portfolio—speed, flexibility, and density—plus, they save the network provider as much as 70 percent of their fiber cabling budget.

In fiber indexing, up to 12 terminals are daisy-chained in a series. This allows a fast and repeatable “cookie-cutter” approach to network design and deployment. The efficient modular design enables efficient,cost-effective connections for new subscribers and services, while allowing providers to take a pay-as-you-grow approach to FTTx deployment.

In a typical FTTx network, signals from the fiber distribution hub (FDH) travel “forward” from the first terminal to the last. When a second FDH cable is connected to the last terminal, the signal runs “backwards” toward the first terminal. Called “reversed feed,” this technique makes additional fibers available, which providers can use to respond in a virtual instant to unforeseen demands for a wide range of revenue-generating services.

  • Fiber Indexing terminals are access terminals using hardened connectivity technology that withstand the rugged outside plant environment
  • Fiber Indexing terminals eliminate splicing and use 12-strand fiber cable in a daisy-chain topology, reducing the total required cable length by up to 70%
  • Hardened adapters are factory-terminated and environmentally sealed to ensure rapid plug-and play drop cable installations

Product Classification

Regional Availability Asia | Australia/New Zealand | EMEA | Latin America | North America
Product Type Access terminal, indexed
Product Series NDX

General Specifications

Cable Type Dielectric - Flat - Loose Tube
Cable, quantity 1
Enclosure Color Black
Mounting Handhole | Pedestal | Pole
Port Type Hardened multi-fiber (HMFOC) jack
Stub Type Hardened multi-fiber (HMFOC) plug

Port Configuration

Click on image to enlarge.

Ordering Tree

Click on image to enlarge.

Material Specifications

Enclosure Material Type Gasketed hardened plastic

Optical Specifications

Fiber Type G.652.D
Operating Wavelength Range 1260 – 1635 nm

Environmental Specifications

Operating Temperature -40 °C to +70 °C (-40 °F to +158 °F)
Relative Humidity 5%–100%, condensing
Environmental Space Above ground | Below ground | Buried
UV Resistance UV stabilized

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant
CHINA-ROHS Below maximum concentration value
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
UK-ROHS Compliant

Product Classification

Regional Availability Asia | Australia/New Zealand | EMEA | Latin America | North America
Product Type Access terminal, indexed
Product Series NDX

General Specifications

Cable Type Dielectric - Flat - Loose Tube
Cable, quantity 1
Enclosure Color Black
Mounting Handhole | Pedestal | Pole
Port Type Hardened multi-fiber (HMFOC) jack
Stub Type Hardened multi-fiber (HMFOC) plug

Material Specifications

Enclosure Material Type Gasketed hardened plastic

Optical Specifications

Fiber Type G.652.D
Operating Wavelength Range 1260 – 1635 nm

Environmental Specifications

Operating Temperature -40 °C to +70 °C (-40 °F to +158 °F)
Relative Humidity 5%–100%, condensing
Environmental Space Above ground | Below ground | Buried
UV Resistance UV stabilized
Click on image to enlarge.
Click on image to enlarge.

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant
CHINA-ROHS Below maximum concentration value
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
UK-ROHS Compliant
