FFHH-65B-R3
8-port sector antenna, 4x 617-806 and 4x 1695–2360 MHz, 65° HPBW, 3x RET, 600 MHz-Ready Antenna Technology
Specifications
Specifications
General Specifications
| Antenna Type | Sector |
| Band | Multiband |
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage | Wind loading figures are validated by wind tunnel measurements described in white paper WP-112534-EN |
| Radome Material | Fiberglass, UV resistant |
| Radiator Material | Aluminum | Low loss circuit board |
| Reflector Material | Aluminum |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, high band | 4 |
| RF Connector Quantity, low band | 4 |
| RF Connector Quantity, total | 8 |
Remote Electrical Tilt (RET) Information
| RET Interface | 8-pin DIN Female | 8-pin DIN Male |
| RET Interface, quantity | 1 female | 1 male |
| Input Voltage | 10–30 Vdc |
| Internal RET | High band (2) | Low band (1) |
| Power Consumption, idle state, maximum | 1 W |
| Power Consumption, normal conditions, maximum | 10 W |
| Protocol | 3GPP/AISG 2.0 (Single RET) |
Dimensions
| Width | 640 mm | 25.197 in |
| Depth | 235 mm | 9.252 in |
| Length | 1830 mm | 72.047 in |
| Net Weight, without mounting kit | 46 kg | 101.413 lb |
Array Layout
| Click on image to enlarge. |

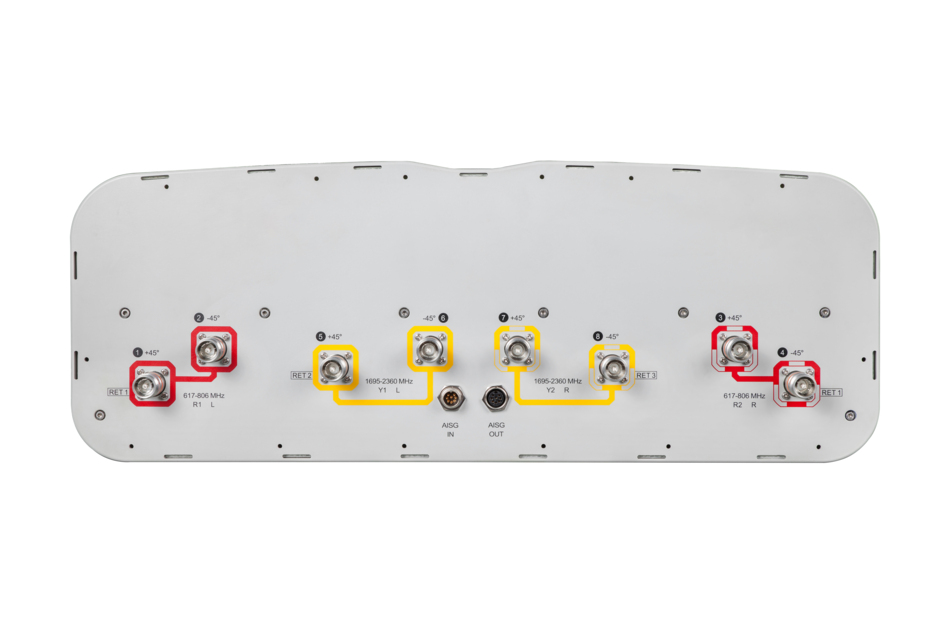

Port Configuration
| Click on image to enlarge. |
Electrical Specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 617 – 806 MHz | 1695 – 2360 MHz |
| Polarization | ±45° |
| Total Input Power, maximum | 900 W @ 50 °C |
Electrical Specifications
| Frequency Band, MHz | 617–698 | 698–806 | 1695–1880 | 1850–1990 | 1920–2200 | 2300–2360 |
| Gain, dBi | 14.1 | 14.3 | 17.6 | 18.4 | 19.0 | 19.7 |
| Beamwidth, Horizontal, degrees | 65 | 60 | 66 | 60 | 60 | 54 |
| Beamwidth, Vertical, degrees | 14.9 | 13.3 | 5.7 | 5.3 | 4.9 | 4.4 |
| Beam Tilt, degrees | 2–14 | 2–14 | 2–12 | 2–12 | 2–12 | 2–12 |
| USLS (First Lobe), dB | 19 | 17 | 20 | 19 | 19 | 20 |
| Front-to-Back Ratio at 180°, dB | 33 | 29 | 36 | 40 | 40 | 42 |
| Isolation, Cross Polarization, dB | 28 | 28 | 28 | 28 | 28 | 28 |
| Isolation, Inter-band, dB | 28 | 28 | 28 | 28 | 28 | 28 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -153 | -153 | -153 | -153 | -153 | |
| Input Power per Port at 50°C, maximum, watts | 250 | 250 | 200 | 200 | 200 | 200 |
Electrical Specifications, BASTA
| Frequency Band, MHz | 617–698 | 698–806 | 1695–1880 | 1850–1990 | 1920–2200 | 2300–2360 |
| Gain by all Beam Tilts, average, dBi | 13.6 | 13.9 | 17.2 | 18.1 | 18.5 | 19.3 |
| Gain by all Beam Tilts Tolerance, dB | ±0.6 | ±0.6 | ±0.6 | ±0.5 | ±0.5 | ±0.5 |
| Gain by Beam Tilt, average, dBi | 2 ° | 13.4 8 ° | 13.714 ° | 13.5 | 2 ° | 13.8 8 ° | 13.914 ° | 13.8 | 2 ° | 17.1 7 ° | 17.312 ° | 17.1 | 2 ° | 18.0 7 ° | 18.212 ° | 17.9 | 2 ° | 18.3 7 ° | 18.612 ° | 18.4 | 2 ° | 19.0 7 ° | 19.412 ° | 19.2 |
| Beamwidth, Horizontal Tolerance, degrees | ±3 | ±4.0 | ±4.5 | ±5.6 | ±6.5 | ±7.9 |
| Beamwidth, Vertical Tolerance, degrees | ±1.1 | ±1.1 | ±0.3 | ±0.3 | ±0.4 | ±0.2 |
| USLS, beampeak to 20° above beampeak, dB | 19 | 17 | 15 | 15 | 16 | 17 |
| Front-to-Back Total Power at 180° ± 30°, dB | 24 | 21 | 29 | 32 | 32 | 32 |
| CPR at Boresight, dB | 22 | 24 | 18 | 16 | 18 | 22 |
| CPR at Sector, dB | 8 | 9 | 7 | 7 | 9 | 9 |
Mechanical Specifications
| Wind Loading @ Velocity, frontal | 765.0 N @ 150 km/h (172.0 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 251.0 N @ 150 km/h (56.4 lbf @ 150 km/h) |
| Wind Loading @ Velocity, maximum | 1,041.0 N @ 150 km/h (234.0 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 788.0 N @ 150 km/h (177.1 lbf @ 150 km/h) |
| Wind Speed, maximum | 241 km/h (150 mph) |
Packaging and Weights
| Width, packed | 752 mm | 29.606 in |
| Depth, packed | 387 mm | 15.236 in |
| Length, packed | 1982 mm | 78.032 in |
| Weight, gross | 57 kg | 125.663 lb |
Regulatory Compliance/Certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
CHINA-ROHS
|
Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
| UK-ROHS | Compliant, Compliant/Exempted |
General Specifications
| Antenna Type | Sector |
| Band | Multiband |
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage | Wind loading figures are validated by wind tunnel measurements described in white paper WP-112534-EN |
| Radome Material | Fiberglass, UV resistant |
| Radiator Material | Aluminum | Low loss circuit board |
| Reflector Material | Aluminum |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, high band | 4 |
| RF Connector Quantity, low band | 4 |
| RF Connector Quantity, total | 8 |
Remote Electrical Tilt (RET) Information
| RET Interface | 8-pin DIN Female | 8-pin DIN Male |
| RET Interface, quantity | 1 female | 1 male |
| Input Voltage | 10–30 Vdc |
| Internal RET | High band (2) | Low band (1) |
| Power Consumption, idle state, maximum | 1 W |
| Power Consumption, normal conditions, maximum | 10 W |
| Protocol | 3GPP/AISG 2.0 (Single RET) |
Dimensions
| Width | 640 mm | 25.197 in |
| Depth | 235 mm | 9.252 in |
| Length | 1830 mm | 72.047 in |
| Net Weight, without mounting kit | 46 kg | 101.413 lb |
Electrical Specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 617 – 806 MHz | 1695 – 2360 MHz |
| Polarization | ±45° |
| Total Input Power, maximum | 900 W @ 50 °C |
Electrical Specifications
| Frequency Band, MHz | 617–698 | 698–806 | 1695–1880 | 1850–1990 | 1920–2200 | 2300–2360 |
| Gain, dBi | 14.1 | 14.3 | 17.6 | 18.4 | 19.0 | 19.7 |
| Beamwidth, Horizontal, degrees | 65 | 60 | 66 | 60 | 60 | 54 |
| Beamwidth, Vertical, degrees | 14.9 | 13.3 | 5.7 | 5.3 | 4.9 | 4.4 |
| Beam Tilt, degrees | 2–14 | 2–14 | 2–12 | 2–12 | 2–12 | 2–12 |
| USLS (First Lobe), dB | 19 | 17 | 20 | 19 | 19 | 20 |
| Front-to-Back Ratio at 180°, dB | 33 | 29 | 36 | 40 | 40 | 42 |
| Isolation, Cross Polarization, dB | 28 | 28 | 28 | 28 | 28 | 28 |
| Isolation, Inter-band, dB | 28 | 28 | 28 | 28 | 28 | 28 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -153 | -153 | -153 | -153 | -153 | |
| Input Power per Port at 50°C, maximum, watts | 250 | 250 | 200 | 200 | 200 | 200 |
Electrical Specifications, BASTA
| Frequency Band, MHz | 617–698 | 698–806 | 1695–1880 | 1850–1990 | 1920–2200 | 2300–2360 |
| Gain by all Beam Tilts, average, dBi | 13.6 | 13.9 | 17.2 | 18.1 | 18.5 | 19.3 |
| Gain by all Beam Tilts Tolerance, dB | ±0.6 | ±0.6 | ±0.6 | ±0.5 | ±0.5 | ±0.5 |
| Gain by Beam Tilt, average, dBi | 2 ° | 13.4; 8 ° | 13.7;14 ° | 13.5 | 2 ° | 13.8; 8 ° | 13.9;14 ° | 13.8 | 2 ° | 17.1; 7 ° | 17.3;12 ° | 17.1 | 2 ° | 18.0; 7 ° | 18.2;12 ° | 17.9 | 2 ° | 18.3; 7 ° | 18.6;12 ° | 18.4 | 2 ° | 19.0; 7 ° | 19.4;12 ° | 19.2 |
| Beamwidth, Horizontal Tolerance, degrees | ±3 | ±4.0 | ±4.5 | ±5.6 | ±6.5 | ±7.9 |
| Beamwidth, Vertical Tolerance, degrees | ±1.1 | ±1.1 | ±0.3 | ±0.3 | ±0.4 | ±0.2 |
| USLS, beampeak to 20° above beampeak, dB | 19 | 17 | 15 | 15 | 16 | 17 |
| Front-to-Back Total Power at 180° ± 30°, dB | 24 | 21 | 29 | 32 | 32 | 32 |
| CPR at Boresight, dB | 22 | 24 | 18 | 16 | 18 | 22 |
| CPR at Sector, dB | 8 | 9 | 7 | 7 | 9 | 9 |
Mechanical Specifications
| Wind Loading @ Velocity, frontal | 765.0 N @ 150 km/h (172.0 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 251.0 N @ 150 km/h (56.4 lbf @ 150 km/h) |
| Wind Loading @ Velocity, maximum | 1,041.0 N @ 150 km/h (234.0 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 788.0 N @ 150 km/h (177.1 lbf @ 150 km/h) |
| Wind Speed, maximum | 241 km/h (150 mph) |
Packaging and Weights
| Width, packed | 752 mm | 29.606 in |
| Depth, packed | 387 mm | 15.236 in |
| Length, packed | 1982 mm | 78.032 in |
| Weight, gross | 57 kg | 125.663 lb |
| Click on image to enlarge. |
| Click on image to enlarge. |
Regulatory Compliance/Certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
|
CHINA-ROHS
|
Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
| UK-ROHS | Compliant, Compliant/Exempted |
