N45C-1XB1

2-port sector antenna, 2x 698–896 MHz, 45° HPBW, 1x RET, internal SBT

Find a Partner
Specifications
Finish making your selections or clear them to view relevant specifications.
Features and Benefits
  • Broadband, providing future-ready single antenna for application in 700 MHz and existing 850 MHz cellular operation
  • Specifically designed to have physical dimensions similar to most existing cellular antennas

General Specifications

Antenna Type Sector
Band Single band
Color Light Gray (RAL 7035)
Grounding Type RF connector body grounded to reflector and mounting bracket
Performance Note Outdoor usage | Wind loading figures are validated by wind tunnel measurements described in white paper WP-112534-EN
Radome Material Fiberglass, UV resistant
Radiator Material Aluminum | Copper | Low loss circuit board
Reflector Material Aluminum

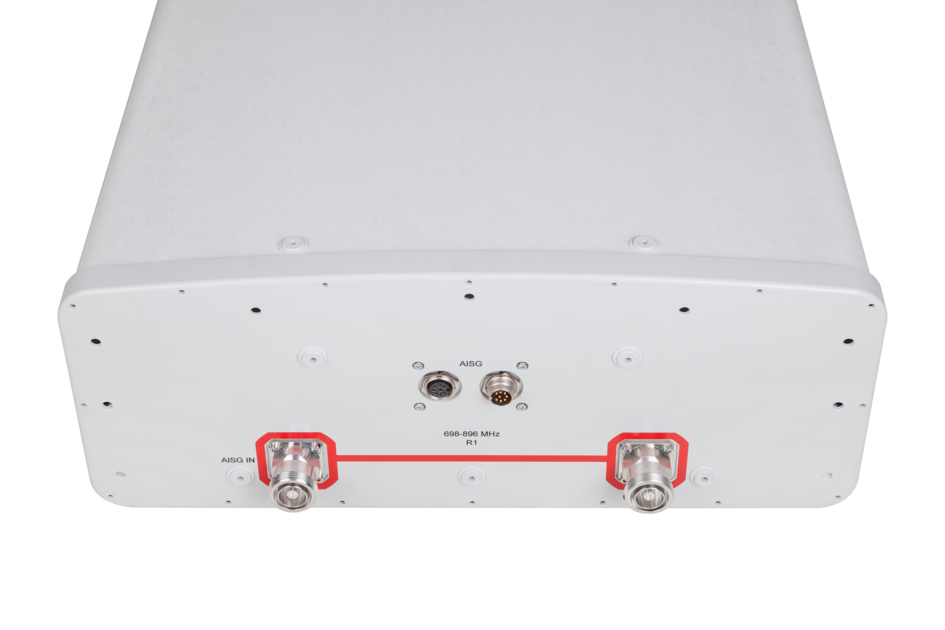

RF Connector Interface 7-16 DIN Female
RF Connector Location Bottom
RF Connector Quantity, low band 2
RF Connector Quantity, total 2

Remote Electrical Tilt (RET) Information

RET Interface 8-pin DIN Female | 8-pin DIN Male
RET Interface, quantity 1 female | 1 male
Input Voltage 10–30 Vdc
Internal Bias Tee Port 1
Internal RET Low band (1)
Power Consumption, idle state, maximum 2 W
Power Consumption, normal conditions, maximum 13 W
Protocol 3GPP/AISG 2.0 (Single RET)

Dimensions

Width 457 mm | 17.992 in
Depth 178 mm | 7.008 in
Length 2437 mm | 95.945 in
Net Weight, without mounting kit 32 kg | 70.548 lb

Array Layout

Click on image to enlarge.

Electrical Specifications

Impedance 50 ohm
Operating Frequency Band 698 – 896 MHz
Polarization ±45°

Electrical Specifications

Frequency Band, MHz 698–806 806–896
Gain, dBi 18.2 18.5
Beamwidth, Horizontal, degrees 47 43
Beamwidth, Vertical, degrees 9 8.3
Beam Tilt, degrees 2–12 2–12
USLS (First Lobe), dB 14 14
Front-to-Back Ratio at 180°, dB 29 30
CPR at Boresight, dB 24 20
CPR at 10 dB Horizontal Beamwidth, dB 11.000000 13.000000
Isolation, Cross Polarization, dB 25 25
VSWR | Return loss, dB 1.5 | 14.0 1.5 | 14.0
PIM, 3rd Order, 2 x 20 W, dBc -153 -153
Input Power per Port, maximum, watts 350 350

Electrical Specifications, BASTA

Frequency Band, MHz 698–806 806–896
Gain by all Beam Tilts, average, dBi 17.9 18.5
Gain by all Beam Tilts Tolerance, dB ±0.5 ±0.2
Gain by Beam Tilt, average, dBi 0 ° | 17.9
6 ° | 18.0
12 ° | 17.7
0 ° | 18.6
6 ° | 18.6
12 ° | 18.3
Beamwidth, Horizontal Tolerance, degrees ±1.9 ±1.9
Beamwidth, Vertical Tolerance, degrees ±0.6 ±0.3
USLS, beampeak to 20° above beampeak, dB 17 16
Front-to-Back Total Power at 180° ± 30°, dB 24 26
CPR at Boresight, dB 27 21
CPR at 10 dB Horizontal Beamwidth, dB 12 16

Mechanical Specifications

Effective Projective Area (EPA), frontal 1.4 m² | 15.069 ft²
Effective Projective Area (EPA), lateral 0.3 m² | 3.229 ft²
Mechanical Tilt Range 0°–11°
Wind Loading @ Velocity, frontal 1,485.0 N @ 150 km/h (333.8 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral 315.0 N @ 150 km/h (70.8 lbf @ 150 km/h)
Wind Loading @ Velocity, rear 1,304.0 N @ 150 km/h (293.2 lbf @ 150 km/h)
Wind Speed, maximum 241 km/h (150 mph)

Packaging and Weights

Width, packed 567 mm | 22.323 in
Depth, packed 311 mm | 12.244 in
Length, packed 2559 mm | 100.748 in
Weight, gross 51.7 kg | 113.979 lb

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant/Exempted
CHINA-ROHS Above maximum concentration value
UK-ROHS Compliant/Exempted

General Specifications

Antenna Type Sector
Band Single band
Color Light Gray (RAL 7035)
Grounding Type RF connector body grounded to reflector and mounting bracket
Performance Note Outdoor usage | Wind loading figures are validated by wind tunnel measurements described in white paper WP-112534-EN
Radome Material Fiberglass, UV resistant
Radiator Material Aluminum | Copper | Low loss circuit board
Reflector Material Aluminum
RF Connector Interface 7-16 DIN Female
RF Connector Location Bottom
RF Connector Quantity, low band 2
RF Connector Quantity, total 2

Remote Electrical Tilt (RET) Information

RET Interface 8-pin DIN Female | 8-pin DIN Male
RET Interface, quantity 1 female | 1 male
Input Voltage 10–30 Vdc
Internal Bias Tee Port 1
Internal RET Low band (1)
Power Consumption, idle state, maximum 2 W
Power Consumption, normal conditions, maximum 13 W
Protocol 3GPP/AISG 2.0 (Single RET)

Dimensions

Width 457 mm | 17.992 in
Depth 178 mm | 7.008 in
Length 2437 mm | 95.945 in
Net Weight, without mounting kit 32 kg | 70.548 lb

Electrical Specifications

Impedance 50 ohm
Operating Frequency Band 698 – 896 MHz
Polarization ±45°

Electrical Specifications

Frequency Band, MHz 698–806 806–896
Gain, dBi 18.2 18.5
Beamwidth, Horizontal, degrees 47 43
Beamwidth, Vertical, degrees 9 8.3
Beam Tilt, degrees 2–12 2–12
USLS (First Lobe), dB 14 14
Front-to-Back Ratio at 180°, dB 29 30
CPR at Boresight, dB 24 20
CPR at 10 dB Horizontal Beamwidth, dB 11.000000 13.000000
Isolation, Cross Polarization, dB 25 25
VSWR | Return loss, dB 1.5 | 14.0 1.5 | 14.0
PIM, 3rd Order, 2 x 20 W, dBc -153 -153
Input Power per Port, maximum, watts 350 350

Electrical Specifications, BASTA

Frequency Band, MHz 698–806 806–896
Gain by all Beam Tilts, average, dBi 17.9 18.5
Gain by all Beam Tilts Tolerance, dB ±0.5 ±0.2
Gain by Beam Tilt, average, dBi 0 ° | 17.9; 6 ° | 18.0; 12 ° | 17.7 0 ° | 18.6; 6 ° | 18.6; 12 ° | 18.3
Beamwidth, Horizontal Tolerance, degrees ±1.9 ±1.9
Beamwidth, Vertical Tolerance, degrees ±0.6 ±0.3
USLS, beampeak to 20° above beampeak, dB 17 16
Front-to-Back Total Power at 180° ± 30°, dB 24 26
CPR at Boresight, dB 27 21
CPR at 10 dB Horizontal Beamwidth, dB 12 16

Mechanical Specifications

Effective Projective Area (EPA), frontal 1.4 m² | 15.069 ft²
Effective Projective Area (EPA), lateral 0.3 m² | 3.229 ft²
Mechanical Tilt Range 0°–11°
Wind Loading @ Velocity, frontal 1,485.0 N @ 150 km/h (333.8 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral 315.0 N @ 150 km/h (70.8 lbf @ 150 km/h)
Wind Loading @ Velocity, rear 1,304.0 N @ 150 km/h (293.2 lbf @ 150 km/h)
Wind Speed, maximum 241 km/h (150 mph)

Packaging and Weights

Width, packed 567 mm | 22.323 in
Depth, packed 311 mm | 12.244 in
Length, packed 2559 mm | 100.748 in
Weight, gross 51.7 kg | 113.979 lb
Click on image to enlarge.

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant/Exempted
CHINA-ROHS Above maximum concentration value
UK-ROHS Compliant/Exempted
