This product was discontinued on: March 31, 2023

For other alternatives, please contact us for more information.

1 Replacement products available
  • RRZZVV-65B-R6H4
    12-port sector antenna, 4x 694–960, 4x 1427–2690 and 4x 1695-2690 MHz, 65° HPBW, 6x RET

RRZZVV-65B-R6

12-port sector antenna, 4x 694–960, 4x 1427–2690 and 4x 1695-2690 MHz, 65° HPBW, 6x RET

Specifications
Finish making your selections or clear them to view relevant specifications.
Features and Benefits
  • All Internal RET actuators are connected in “Cascaded SRET” configuration
  • Uses the 4.3-10 connector which is 40 percent smaller than the 7-16 DIN connector
  • Supports re-configurable antenna sharing capability enabling control of the internal RET system using up to two separate RET compatible OEM radios

General Specifications

Antenna Type Sector
Band Multiband
Grounding Type RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note Outdoor usage | Wind loading figures are validated by wind tunnel measurements described in white paper WP-112534-EN
Radome Material Fiberglass, UV resistant
Radiator Material Low loss circuit board
Reflector Material Aluminum
RF Connector Interface 4.3-10 Female
RF Connector Location Bottom
RF Connector Quantity, high band 8
RF Connector Quantity, low band 4
RF Connector Quantity, total 12

Remote Electrical Tilt (RET) Information

RET Hardware CommRET v2
RET Interface 8-pin DIN Female | 8-pin DIN Male
RET Interface, quantity 2 female | 2 male
Input Voltage 10–30 Vdc
Internal RET High band (4) | Low band (2)
Power Consumption, idle state, maximum 1 W
Power Consumption, normal conditions, maximum 8 W
Protocol 3GPP/AISG 2.0 (Single RET)

Dimensions

Width 498 mm | 19.606 in
Depth 197 mm | 7.756 in
Length 2100 mm | 82.677 in
Net Weight, without mounting kit 41.4 kg | 91.271 lb

Array Layout

Click on image to enlarge.

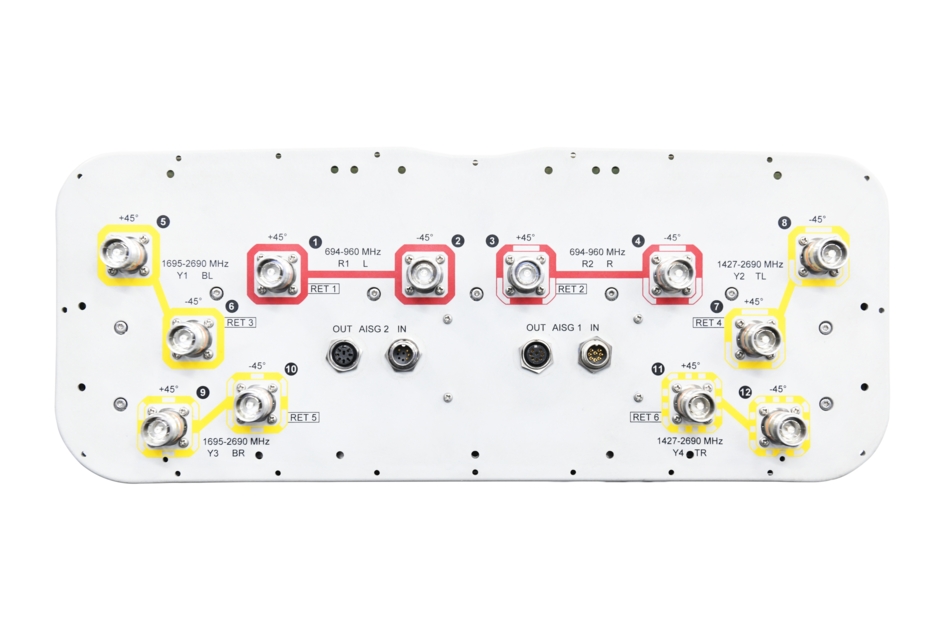

Port Configuration

Click on image to enlarge.

Electrical Specifications

Impedance 50 ohm
Operating Frequency Band 694 – 960 MHz | 1427 – 2690 MHz | 1695 – 2690 MHz
Polarization ±45°
Total Input Power, maximum 900 W @ 50 °C

Electrical Specifications

Frequency Band, MHz 694–790 790–890 890–960 1427–1518 1695–1920 1920–2180 2300–2500 2500–2690
Gain, dBi 14.5 14.9 15.3 14.4 16.2 16.9 17.5 17.2
Beamwidth, Horizontal, degrees 71 66 61 67 59 60 56 60
Beamwidth, Vertical, degrees 10.8 9.6 8.8 10.9 9.2 8.3 7.1 6.7
Beam Tilt, degrees 2–12 2–12 2–12 2–12 2–12 2–12 2–12 2–12
USLS (First Lobe), dB 18 19 18 16 14 15 16 15
Front-to-Back Ratio at 180°, dB 33 31 31 33 34 34 34 31
Isolation, Cross Polarization, dB 28 28 28 26 27 27 27 27
Isolation, Inter-band, dB 28 28 28 27 28 28 28 28
VSWR | Return loss, dB 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0
PIM, 3rd Order, 2 x 20 W, dBc -150 -150 -150 -150 -150 -150 -150 -150
Input Power per Port at 50°C, maximum, watts 300 300 300 250 250 250 200 200

Electrical Specifications, BASTA

Frequency Band, MHz 694–790 790–890 890–960 1427–1518 1695–1920 1920–2180 2300–2500 2500–2690
Gain by all Beam Tilts, average, dBi 14.2 14.6 14.9 13.9 15.6 16.5 17.1 16.7
Gain by all Beam Tilts Tolerance, dB ±0.4 ±0.4 ±0.6 ±0.5 ±0.9 ±0.4 ±0.5 ±0.7
Gain by Beam Tilt, average, dBi 2 ° | 14.3
7 ° | 14.3
12 ° | 14.0
2 ° | 14.6
7 ° | 14.7
12 ° | 14.3
2 ° | 15.0
7 ° | 15.0
12 ° | 14.5
2 ° | 13.8
7 ° | 13.9
12 ° | 13.8
2 ° | 15.5
7 ° | 15.7
12 ° | 15.6
2 ° | 16.3
7 ° | 16.5
12 ° | 16.5
2 ° | 16.8
7 ° | 17.2
12 ° | 17.0
2 ° | 16.4
7 ° | 16.8
12 ° | 16.7
Beamwidth, Vertical Tolerance, degrees ±0.8 ±0.8 ±0.6 ±0.7 ±0.8 ±0.8 ±0.6 ±0.7
USLS, beampeak to 20° above beampeak, dB 17 17 16 13 12 13 14 13
Front-to-Back Total Power at 180° ± 30°, dB 21 21 22 25 29 28 27 26
CPR at Boresight, dB 21 22 22 16 18 20 18 16

Mechanical Specifications

Mechanical Tilt Range 0°–12°
Wind Loading @ Velocity, frontal 803.0 N @ 150 km/h (180.5 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral 275.0 N @ 150 km/h (61.8 lbf @ 150 km/h)
Wind Loading @ Velocity, maximum 1,040.0 N @ 150 km/h (233.8 lbf @ 150 km/h)
Wind Loading @ Velocity, rear 661.0 N @ 150 km/h (148.6 lbf @ 150 km/h)
Wind Speed, maximum 241 km/h (150 mph)

Packaging and Weights

Width, packed 565 mm | 22.244 in
Depth, packed 368 mm | 14.488 in
Length, packed 2279 mm | 89.724 in
Weight, gross 55.2 kg | 121.695 lb

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant/Exempted
CHINA-ROHS Above maximum concentration value
UK-ROHS Compliant/Exempted

General Specifications

Antenna Type Sector
Band Multiband
Grounding Type RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note Outdoor usage | Wind loading figures are validated by wind tunnel measurements described in white paper WP-112534-EN
Radome Material Fiberglass, UV resistant
Radiator Material Low loss circuit board
Reflector Material Aluminum
RF Connector Interface 4.3-10 Female
RF Connector Location Bottom
RF Connector Quantity, high band 8
RF Connector Quantity, low band 4
RF Connector Quantity, total 12

Remote Electrical Tilt (RET) Information

RET Hardware CommRET v2
RET Interface 8-pin DIN Female | 8-pin DIN Male
RET Interface, quantity 2 female | 2 male
Input Voltage 10–30 Vdc
Internal RET High band (4) | Low band (2)
Power Consumption, idle state, maximum 1 W
Power Consumption, normal conditions, maximum 8 W
Protocol 3GPP/AISG 2.0 (Single RET)

Dimensions

Width 498 mm | 19.606 in
Depth 197 mm | 7.756 in
Length 2100 mm | 82.677 in
Net Weight, without mounting kit 41.4 kg | 91.271 lb

Electrical Specifications

Impedance 50 ohm
Operating Frequency Band 694 – 960 MHz | 1427 – 2690 MHz | 1695 – 2690 MHz
Polarization ±45°
Total Input Power, maximum 900 W @ 50 °C

Electrical Specifications

Frequency Band, MHz 694–790 790–890 890–960 1427–1518 1695–1920 1920–2180 2300–2500 2500–2690
Gain, dBi 14.5 14.9 15.3 14.4 16.2 16.9 17.5 17.2
Beamwidth, Horizontal, degrees 71 66 61 67 59 60 56 60
Beamwidth, Vertical, degrees 10.8 9.6 8.8 10.9 9.2 8.3 7.1 6.7
Beam Tilt, degrees 2–12 2–12 2–12 2–12 2–12 2–12 2–12 2–12
USLS (First Lobe), dB 18 19 18 16 14 15 16 15
Front-to-Back Ratio at 180°, dB 33 31 31 33 34 34 34 31
Isolation, Cross Polarization, dB 28 28 28 26 27 27 27 27
Isolation, Inter-band, dB 28 28 28 27 28 28 28 28
VSWR | Return loss, dB 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0
PIM, 3rd Order, 2 x 20 W, dBc -150 -150 -150 -150 -150 -150 -150 -150
Input Power per Port at 50°C, maximum, watts 300 300 300 250 250 250 200 200

Electrical Specifications, BASTA

Frequency Band, MHz 694–790 790–890 890–960 1427–1518 1695–1920 1920–2180 2300–2500 2500–2690
Gain by all Beam Tilts, average, dBi 14.2 14.6 14.9 13.9 15.6 16.5 17.1 16.7
Gain by all Beam Tilts Tolerance, dB ±0.4 ±0.4 ±0.6 ±0.5 ±0.9 ±0.4 ±0.5 ±0.7
Gain by Beam Tilt, average, dBi 2 ° | 14.3; 7 ° | 14.3;12 ° | 14.0 2 ° | 14.6; 7 ° | 14.7;12 ° | 14.3 2 ° | 15.0; 7 ° | 15.0;12 ° | 14.5 2 ° | 13.8; 7 ° | 13.9;12 ° | 13.8 2 ° | 15.5; 7 ° | 15.7;12 ° | 15.6 2 ° | 16.3; 7 ° | 16.5;12 ° | 16.5 2 ° | 16.8; 7 ° | 17.2;12 ° | 17.0 2 ° | 16.4; 7 ° | 16.8;12 ° | 16.7
Beamwidth, Vertical Tolerance, degrees ±0.8 ±0.8 ±0.6 ±0.7 ±0.8 ±0.8 ±0.6 ±0.7
USLS, beampeak to 20° above beampeak, dB 17 17 16 13 12 13 14 13
Front-to-Back Total Power at 180° ± 30°, dB 21 21 22 25 29 28 27 26
CPR at Boresight, dB 21 22 22 16 18 20 18 16

Mechanical Specifications

Mechanical Tilt Range 0°–12°
Wind Loading @ Velocity, frontal 803.0 N @ 150 km/h (180.5 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral 275.0 N @ 150 km/h (61.8 lbf @ 150 km/h)
Wind Loading @ Velocity, maximum 1,040.0 N @ 150 km/h (233.8 lbf @ 150 km/h)
Wind Loading @ Velocity, rear 661.0 N @ 150 km/h (148.6 lbf @ 150 km/h)
Wind Speed, maximum 241 km/h (150 mph)

Packaging and Weights

Width, packed 565 mm | 22.244 in
Depth, packed 368 mm | 14.488 in
Length, packed 2279 mm | 89.724 in
Weight, gross 55.2 kg | 121.695 lb
Click on image to enlarge.
Click on image to enlarge.

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant/Exempted
CHINA-ROHS Above maximum concentration value
UK-ROHS Compliant/Exempted
