I100 | RUCKUS i100 IoT Module
- Available in:
- Asia
- Australia/New Zealand
- EMEA
- Latin America
- North America

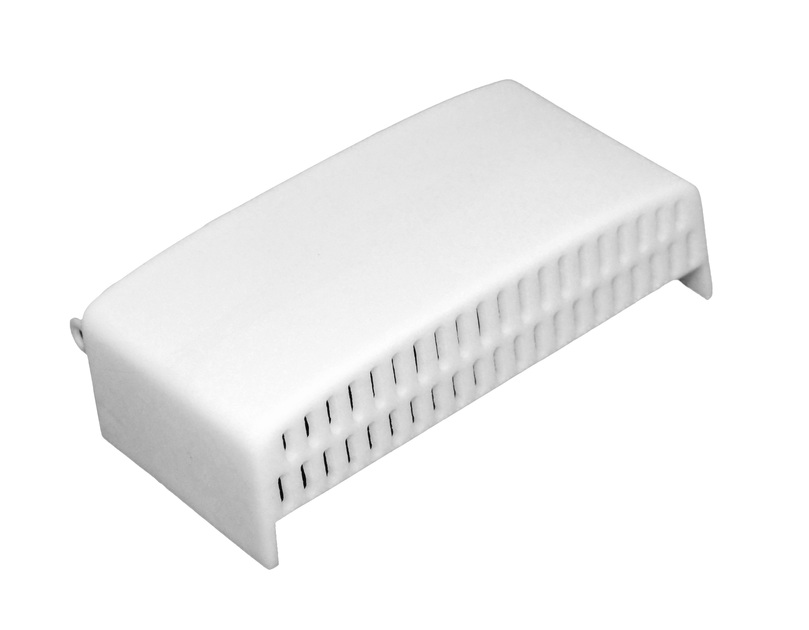

The i100 IoT module provides IoT functionality to RUCKUS AP
Features and Benefits
RUCKUS pre-WiFi 6 Access Points that have a USB Port can use the i100 module to add IoT functionality to the existing Wi-fi network.
The i100 provides Bluetooth and Zigbee radio capabilities, integrates with the existing RUCKUS AP via a USB connections. IoT traffic is directed to the IoT Controller which provides visiability, management, and configuration capabilities as well as north bound APIs to cloud based, device specific tools and services.
Through the i100 module, we are able to enforce network security and policy for attaching IoT devices as well as securing IoT traffic over the network and to the cloud.
The i100 provides Bluetooth and Zigbee radio capabilities, integrates with the existing RUCKUS AP via a USB connections. IoT traffic is directed to the IoT Controller which provides visiability, management, and configuration capabilities as well as north bound APIs to cloud based, device specific tools and services.
Through the i100 module, we are able to enforce network security and policy for attaching IoT devices as well as securing IoT traffic over the network and to the cloud.
- Integrates with existing RUCKUS APs
- Supports Zigbee and Bluetooth® Low Energy
- Eliminates the need for redundant overlay IoT Networks
Specifications
Product Classification
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
| Product Type | IoT module |
| Product Brand | RUCKUS® |
General Specifications
| Interfaces | 12 (Bluetooth® Low Energy) | 25 (Zigbee) | USB 2.0 |
| IoT Protocol | Bluetooth® Low Energy | Eddystone (software configurable) | Zigbee 3.0 | iBeacon |
| Memory | 1 MB (Flash) | 256 KB (RAM) |
Dimensions
| Height | 8.25 mm | 0.325 in |
| Width | 47.83 mm | 1.883 in |
| Depth | 18 mm | 0.709 in |
Electrical Specifications
| Output Power, maximum | 16.5 W dBm |
| Operating Current at Voltage, maximum | -100 mA @ 5 Vdc |
| Power Consumption, maximum | 500 mW |
Environmental Specifications
| Operating Temperature | -40 °C to +70 °C (-40 °F to +158 °F) |
| Standards Compliance | ETSI | FCC |
Packaging and Weights
| Weight, net | 85 g | 0.187 lb |
Product Classification
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
| Product Type | IoT module |
| Product Brand | RUCKUS® |
General Specifications
| Interfaces | 12 (Bluetooth® Low Energy) | 25 (Zigbee) | USB 2.0 |
| IoT Protocol | Bluetooth® Low Energy | Eddystone (software configurable) | Zigbee 3.0 | iBeacon |
| Memory | 1 MB (Flash) | 256 KB (RAM) |
Dimensions
| Height | 8.25 mm | 0.325 in |
| Width | 47.83 mm | 1.883 in |
| Depth | 18 mm | 0.709 in |
Electrical Specifications
| Output Power, maximum | 16.5 W dBm |
| Operating Current at Voltage, maximum | -100 mA @ 5 Vdc |
| Power Consumption, maximum | 500 mW |
Environmental Specifications
| Operating Temperature | -40 °C to +70 °C (-40 °F to +158 °F) |
| Standards Compliance | ETSI | FCC |
Packaging and Weights
| Weight, net | 85 g | 0.187 lb |
