106628852 | M106FR2-003

  • Available in:
  • Asia
  • Australia/New Zealand
  • EMEA
  • Latin America
  • North America

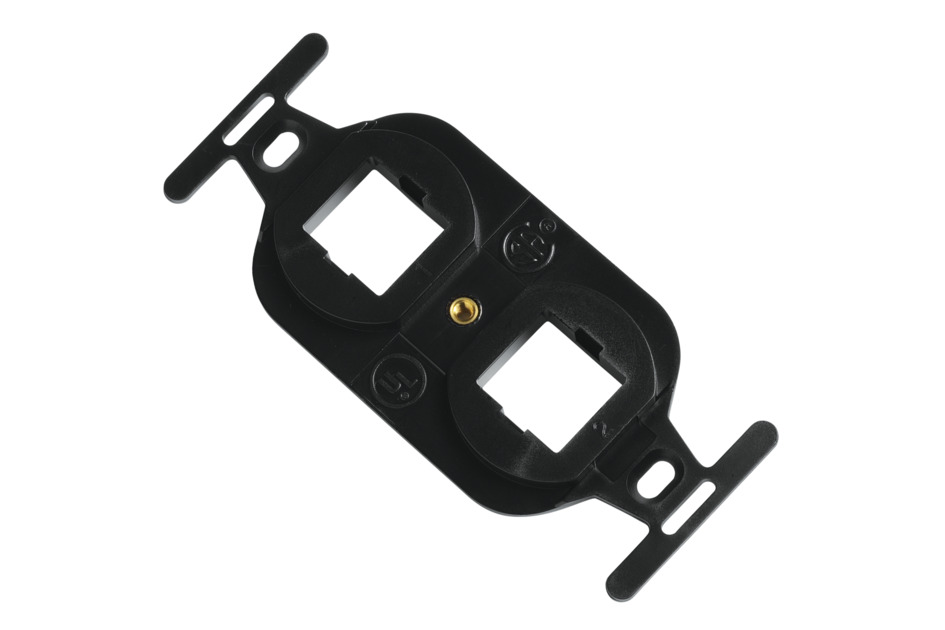

M106 Flush Mounted Modular Mounting Frame, two port black

Find a Partner
Specifications
Finish making your selections or clear them to view relevant specifications.

Product Classification

Regional Availability Asia | Australia/New Zealand | EMEA | Latin America | North America
Portfolio CommScope®
Product Type Mounting kit

General Specifications

Application Used with M Series modular information outlet
Color Black
Mounting Flush
Total Ports, quantity 2

Dimensions

Height 104.14 mm | 4.1 in
Width 44.45 mm | 1.75 in
Depth 12.7 mm | 0.5 in

Material Specifications

Material Type High-impact, flame retardant, thermoplastic

Environmental Specifications

Flammability Rating UL 94 V-0
Safety Standard UL | cUL

Packaging and Weights

Packaging quantity 1
Weight, net 0.036 kg | 0.08 lb

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant
CHINA-ROHS Below maximum concentration value
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
UK-ROHS Compliant
