HTRN-S28M25AUIS
- Available in:
- Asia
- Australia/New Zealand
- EMEA
- Latin America
- North America

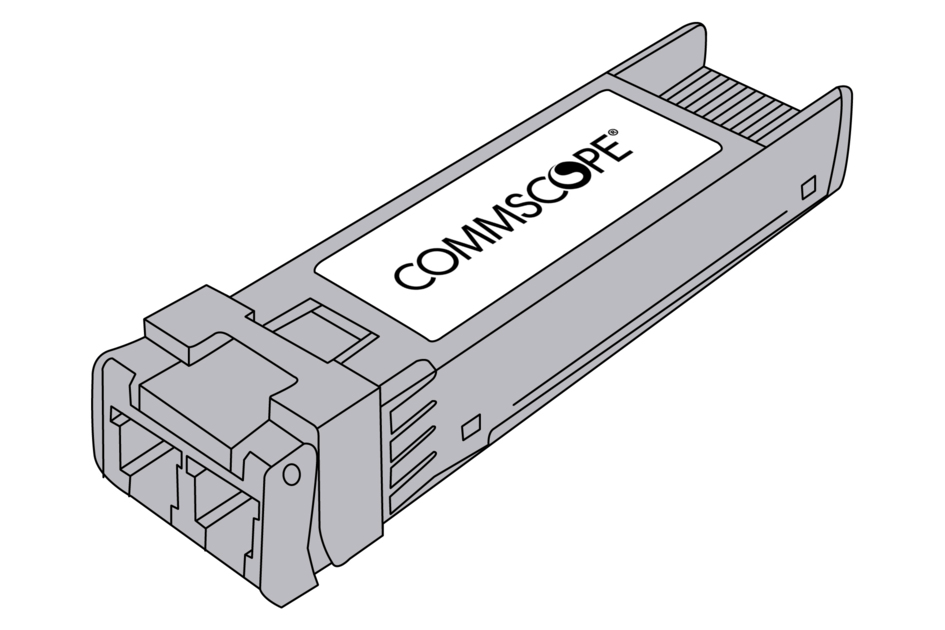

HELIAX® Hot-pluggable SFP28, Multimode, 25Gb/s, 850nm, Ericsson, Nokia, Samsung and MSA coded, Industrial Temperature Rated, Short Range
Specifications
Product Classification
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
| Product Type | Optical module |
| Product Brand | HELIAX® |
| Product Series | SFP28 |
General Specifications
| Data Rate | 25Gb/s |
| Interface | LC/UPC |
| Transceiver Distance | 300 m | 984.252 ft |
Dimensions
| Height | 12 mm | 0.472 in |
| Width | 14.5 mm | 0.571 in |
| Depth | 57 mm | 2.244 in |
Electrical Specifications
| Input Voltage | 3.3 V |
| Electromagnetic Compatibility/Interference (EMC/EMI) | EN 55022 Class B | FCC-CFR, Part 15, sub-part B |
| Electromagnetic Sustainability (EMS) | EN 55024:2010 |
| Laser Safety Standard | EN 60825-1 | EN 60825-2 | FDA 21CFR 1040.10 |
Ordering Tree
| Click on image to enlarge. |
Optical Specifications
| Average Optical Output Power, maximum | -8.4 dBm |
| Average Optical Output Power, minimum | 2.4 dBm |
Environmental Specifications
| Operating Temperature | -40 °C to +85 °C (-40 °F to +185 °F) |
Product Classification
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
| Product Type | Optical module |
| Product Brand | HELIAX® |
| Product Series | SFP28 |
General Specifications
| Data Rate | 25Gb/s |
| Interface | LC/UPC |
| Transceiver Distance | 300 m | 984.252 ft |
Dimensions
| Height | 12 mm | 0.472 in |
| Width | 14.5 mm | 0.571 in |
| Depth | 57 mm | 2.244 in |
Electrical Specifications
| Input Voltage | 3.3 V |
| Electromagnetic Compatibility/Interference (EMC/EMI) | EN 55022 Class B | FCC-CFR, Part 15, sub-part B |
| Electromagnetic Sustainability (EMS) | EN 55024:2010 |
| Laser Safety Standard | EN 60825-1 | EN 60825-2 | FDA 21CFR 1040.10 |
Optical Specifications
| Average Optical Output Power, maximum | -8.4 dBm |
| Average Optical Output Power, minimum | 2.4 dBm |
Environmental Specifications
| Operating Temperature | -40 °C to +85 °C (-40 °F to +185 °F) |
| Click on image to enlarge. |
