SHK-158-1-P
Base Product: SHK-SERIES-HANGER-BLOCKS

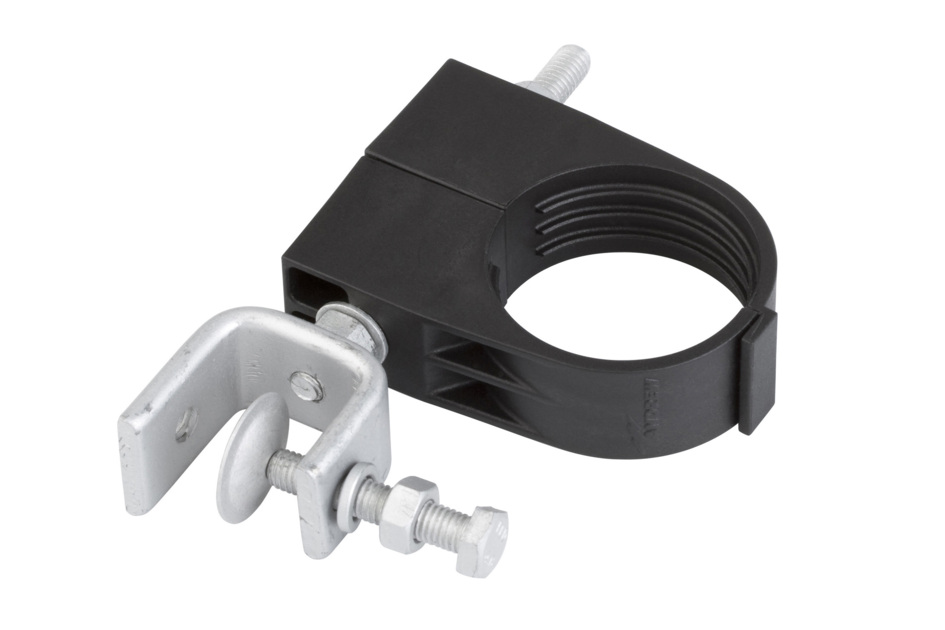

Single Hanger Kit for 1-5/8 in coaxial cable, single stack; includes hardware and angle adapter
Specifications
Product Classification
| Product Type | Hanger kit |
| Product Brand | ValuSite™ |
| Ordering Note | CommScope® non-standard product |
General Specifications
| Cables per Hanger | 1 |
| Color | Black |
| Hanger Type | Composite clamp |
| Mounting | M8 hardware |
Dimensions
| Maximum Stack Height | 1 |
| Height | 79 mm | 3.110 in |
| Width | 25.9 mm | 1.020 in |
| Length | 90.4 mm | 3.559 in |
| Compatible Cable Diameter Range | 49–51.1 mm |
| Compatible Diameter, maximum | 50.8 mm | 2.000 in |
| Compatible Diameter, minimum | 49 mm | 1.929 in |
| Nominal Size | 1-5/8 in |
Electrical Specifications
| Return Loss Effect, maximum | 0.1 dB |
| DTF Effect, maximum | 0.1 dB |
Material Specifications
| Material Type | Engineered plastic |
Mechanical Specifications
| Vibration Survival | ≥4 hours at resonant frequency |
Environmental Specifications
| Operating Temperature | -40 °C to +85 °C (-40 °F to +185 °F) |
| Corrosion Resistance, minimum with no degredation | ≥500 hours in salt spray chamber |
| Environmental Strength Capability | Double cable weight |
| UV Resistance, minimum with no degradation | ≥100 hours exposure in accelerated UV life chamber |
Packaging and Weights
| Height, packed | 38.1 cm | 15 in |
| Width, packed | 38.1 cm | 15 in |
| Length, packed | 7.6 cm | 2.992 in |
| Included | Angle adapter | Hardware |
| Packaging quantity | 1 |
| Weight, gross | 0.57 kg | 1.257 lb |
Regulatory Compliance/Certifications
| Agency | Classification |
| ROHS | Compliant |
| CHINA-ROHS | Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
| UK-ROHS | Compliant |
Product Classification
| Product Type | Hanger kit |
| Product Brand | ValuSite™ |
| Ordering Note | CommScope® non-standard product |
General Specifications
| Cables per Hanger | 1 |
| Color | Black |
| Hanger Type | Composite clamp |
| Mounting | M8 hardware |
Dimensions
| Maximum Stack Height | 1 |
| Height | 79 mm | 3.110 in |
| Width | 25.9 mm | 1.020 in |
| Length | 90.4 mm | 3.559 in |
| Compatible Cable Diameter Range | 49–51.1 mm |
| Compatible Diameter, maximum | 50.8 mm | 2.000 in |
| Compatible Diameter, minimum | 49 mm | 1.929 in |
| Nominal Size | 1-5/8 in |
Electrical Specifications
| Return Loss Effect, maximum | 0.1 dB |
| DTF Effect, maximum | 0.1 dB |
Material Specifications
| Material Type | Engineered plastic |
Mechanical Specifications
| Vibration Survival | ≥4 hours at resonant frequency |
Environmental Specifications
| Operating Temperature | -40 °C to +85 °C (-40 °F to +185 °F) |
| Corrosion Resistance, minimum with no degredation | ≥500 hours in salt spray chamber |
| Environmental Strength Capability | Double cable weight |
| UV Resistance, minimum with no degradation | ≥100 hours exposure in accelerated UV life chamber |
Packaging and Weights
| Height, packed | 38.1 cm | 15 in |
| Width, packed | 38.1 cm | 15 in |
| Length, packed | 7.6 cm | 2.992 in |
| Included | Angle adapter | Hardware |
| Packaging quantity | 1 |
| Weight, gross | 0.57 kg | 1.257 lb |
Regulatory Compliance/Certifications
| Agency | Classification |
| ROHS | Compliant |
| CHINA-ROHS | Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
| UK-ROHS | Compliant |
