MD-FSST

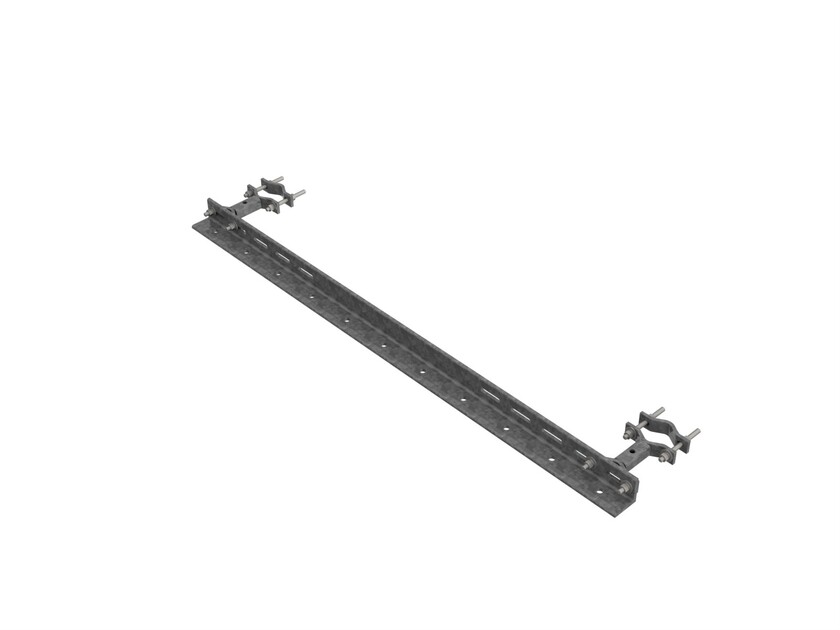

Face Mounted Microwave Strut Support

Find a Partner
Specifications
Finish making your selections or clear them to view relevant specifications.

Product Classification

Product Type Microwave strut support

General Specifications

Mounting Straight legs up to 88.9 mm (3-1/2 in) OD
Tower Taper Non-tapered

Dimensions

Height 152.4 mm | 6 in
Width 152.4 mm | 6 in
Length 1676.4 mm | 66 in
Mounting Diameter, maximum 88.9 mm | 3.5 in
Mounting Diameter, minimum 38.1 mm | 1.5 in

Material Specifications

Material Type Hot dip galvanized steel

Packaging and Weights

Included Angle | Attachment hardware | Clamps
Packaging quantity 1
Weight, net 50 kg | 110.231 lb

Product Classification

Product Type Microwave strut support

General Specifications

Mounting Straight legs up to 88.9 mm (3-1/2 in) OD
Tower Taper Non-tapered

Dimensions

Height 152.4 mm | 6 in
Width 152.4 mm | 6 in
Length 1676.4 mm | 66 in
Mounting Diameter, maximum 88.9 mm | 3.5 in
Mounting Diameter, minimum 38.1 mm | 1.5 in

Material Specifications

Material Type Hot dip galvanized steel

Packaging and Weights

Included Angle | Attachment hardware | Clamps
Packaging quantity 1
Weight, net 50 kg | 110.231 lb

Assembly Drawing

Product Specification

Assembly Drawing

Product Specification
