286946-000 | RWPS-C-45/15-250
- Available in:
- EMEA

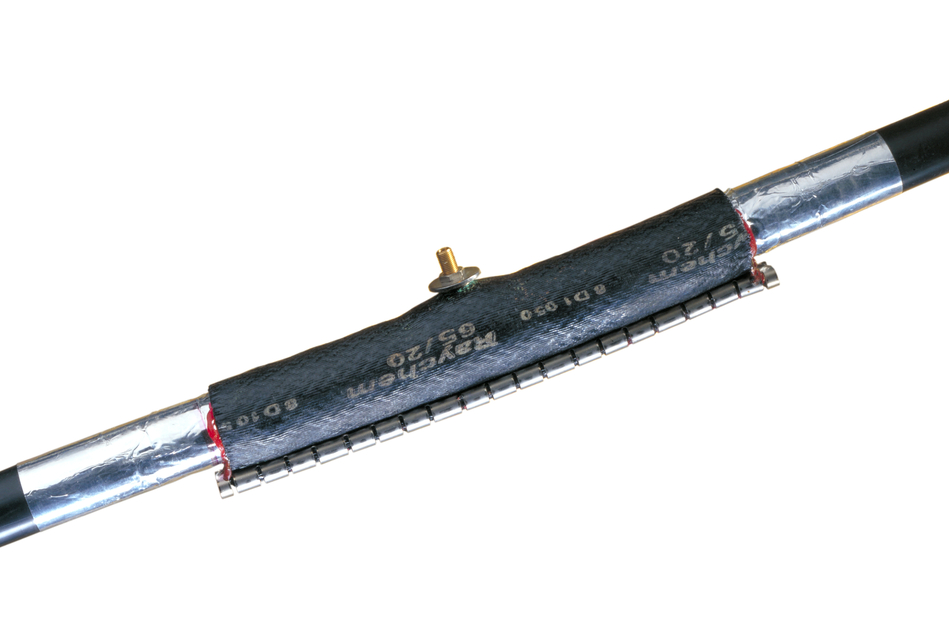

RWPS wraparound pressure feeding sleeve heat shrink kit, pressurized, for 15 to 45 mm cable diameter, 250 mm long
Specifications
Features and Benefits
- Product can be used immediately after cooling down to ambient temperature
- Sleeve kit with incorporated pressure access point for all types of pressurized cables
Specifications
Product classification
| Regional Availability | EMEA |
| Product Type | Heat shrink repair sleeve |
| Product Series | RWPS |
General Specifications
| Color | Black |
| Sealant Type | Hotmelt adhesive |
Dimensions
| Length | 250 mm | 9.843 in |
| Expanded Inside Diameter, minimum | 45 mm | 1.772 in |
| Recovered Inside Diameter, maximum | 15 mm | 0.591 in |
| Single Cable Diameter, maximum | 45 mm | 1.772 in |
| Single Cable Diameter, minimum | 15 mm | 0.591 in |
Material Specifications
| Material Type | Fiber-reinforced multi-layer sealing sleeve |
Environmental Specifications
| Environmental Space | Buried | Ducted |
Packaging and Weights
| Packaging quantity | 1 |
| Packaging Type | Bag | Carton |
Regulatory Compliance/Certifications
| Agency | Classification |
CHINA-ROHS
|
Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
| ROHS | Compliant |
| UK-ROHS | Compliant |
Product classification
| Regional Availability | EMEA |
| Product Type | Heat shrink repair sleeve |
| Product Series | RWPS |
General Specifications
| Color | Black |
| Sealant Type | Hotmelt adhesive |
Dimensions
| Length | 250 mm | 9.843 in |
| Expanded Inside Diameter, minimum | 45 mm | 1.772 in |
| Recovered Inside Diameter, maximum | 15 mm | 0.591 in |
| Single Cable Diameter, maximum | 45 mm | 1.772 in |
| Single Cable Diameter, minimum | 15 mm | 0.591 in |
Material Specifications
| Material Type | Fiber-reinforced multi-layer sealing sleeve |
Environmental Specifications
| Environmental Space | Buried | Ducted |
Packaging and Weights
| Packaging quantity | 1 |
| Packaging Type | Bag | Carton |
Regulatory Compliance/Certifications
| Agency | Classification |
|
CHINA-ROHS
|
Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
| ROHS | Compliant |
| UK-ROHS | Compliant |
