2105067

Base Product

Available in:
Asia
Australia/New Zealand
China
Europe
India
Middle East/Africa

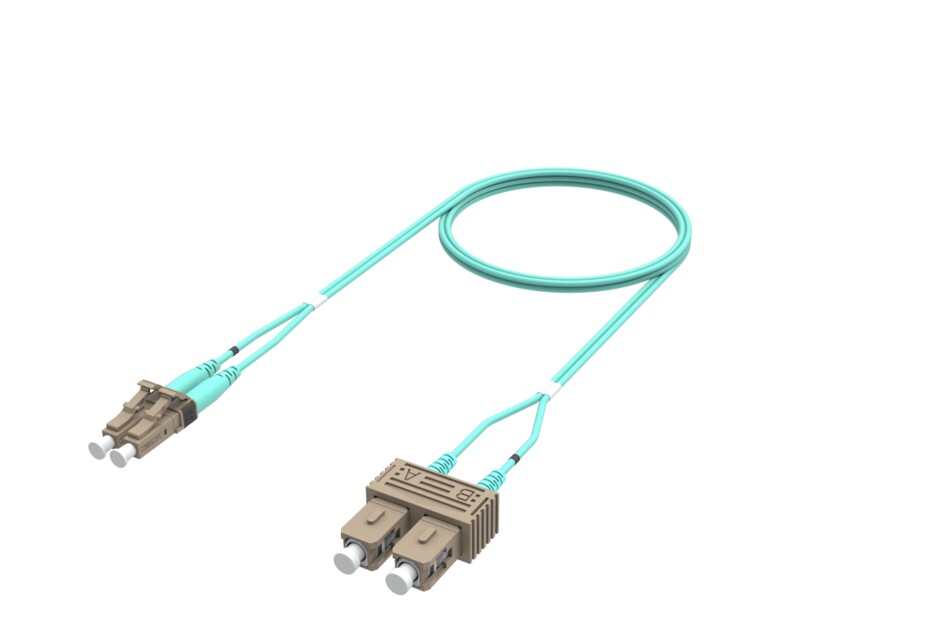

Fiber Optic Patch Cord, OM4, LC/SC Duplex, 1.8mm, LSZH & OFNR, Aqua

Configure Product Variants

Find a Partner

Specifications

Finish making your selections or clear them to view relevant specifications.

Download

Your web browser (Internet Explorer 11 or lower) is out of date and the functions below will not work with Internet Explorer.
Update your browser for more security, speed, functionality and experience on this site.

Update browser

Product Variants

Configure and display product variants of 2105067 by selecting options

Specifications

Product classification

Regional Availability	Asia \| Australia/New Zealand \| China \| Europe \| India \| Middle East/Africa
Portfolio	CommScope®
Product Type	Fiber patch cord, duplex
Product Series	210

General Specifications

Connector A, quantity	2
Color, boot A	Aqua
Color, connector A	Beige
Connector B, quantity	2
Color, boot B	Aqua
Color, connector B	Beige
Interface, Connector A	LC/UPC
Interface, Connector B	SC/UPC
Jacket Color	Aqua
Polarity	Pairs, flipped
Total Fibers, quantity	2

Dimensions

Cable Assembly Length Range (m)	1 – 50
Diameter Over Jacket	1.8 mm \| 0.071 in

Ordering Tree

Click on image to enlarge.

Mechanical Specifications

Cable Retention Strength, maximum

11.24 lb @ 0 °

Optical Specifications

Fiber Mode	Multimode
Fiber Type	OM4, LazrSPEED®
Insertion Loss, maximum	0.3 dB
Return Loss, minimum	27 dB

Environmental Specifications

Operating Temperature	-10 °C to +60 °C (+14 °F to +140 °F)
Operating Temperature Note	Specification applicable to non-terminated bulk fiber cable
Environmental Space	Dual Rated LSZH/Riser

Packaging and Weights

Packaging quantity
