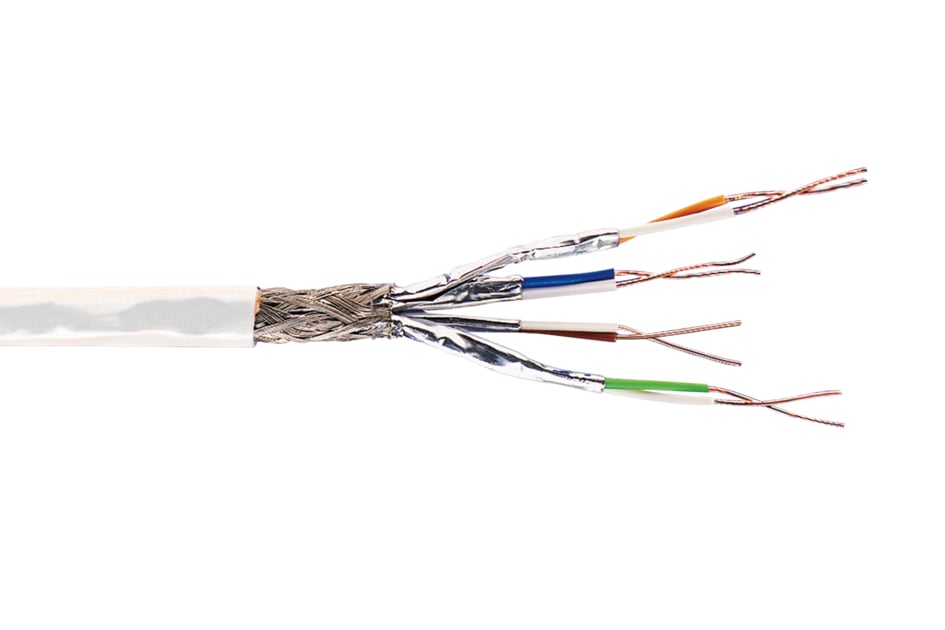

Copper Cable, category 7A, 4 pair, simplex, S/FTP, LSFRZH, 22 AWG solid, 1000 m reel, white
Specifications
Finish making your selections or clear them to view relevant specifications.
How to Buy
Specifications

Product Classification

Regional Availability EMEA
Portfolio NETCONNECT®
Product Type Twisted pair cable

General Specifications

ANSI/TIA Category 7A
Cable Component Type Horizontal
Cable Type S/FTP (shielded)
Conductor Type, singles Solid
Conductors, quantity 8
Jacket Color White
Pairs, quantity 4
Transmission Standards ANSI/TIA-568.2-D | IEC 61156-7 | ISO/IEC 11801 Class FA

Dimensions

Cable Length 1000.049 m | 3281 ft
Cable Length Tolerance ±5%
Diameter Over Conductor 1.501 mm | 0.0591 in
Diameter Over Jacket, nominal 7.798 mm | 0.307 in
Jacket Thickness 0.635 mm | 0.025 in
Conductor Gauge, singles 22 AWG

Cross Section Drawing

Click on image to enlarge.

Electrical Specifications

Characteristic Impedance 100 ohm
Coupling Attenuation Type I
dc Resistance Unbalance, maximum 2 %
dc Resistance, maximum 6.51 ohms/100 m | 1.984 ohms/100 ft
Delay Skew, maximum 12 ns
Mutual Capacitance at Frequency 4.1 nF/100 m @ 1 kHz
Nominal Velocity of Propagation (NVP) 80 %
Operating Frequency, maximum 1200 MHz
Operating Voltage, maximum 80 V
Safety Voltage Rating 240 V
Segregation Class d

Electrical Performance

Click on image to enlarge.

Material Specifications

Conductor Material Bare copper
Insulation Material Foamed polyethylene (FPE)
Jacket Material Low Smoke Fire Retardant Zero Halogen (LSFRZH)
Shield (Tape) Material Aluminum/Polyester

Mechanical Specifications

Pulling Tension, maximum 11.34 kg | 25 lb

Environmental Specifications

Installation temperature 0 °C to +50 °C (+32 °F to +122 °F)
Operating Temperature -20 °C to +60 °C (-4 °F to +140 °F)
Acid Gas Test Method IEC 60754-2
EN50575 CPR Cable EuroClass Fire Performance Dca
EN50575 CPR Cable EuroClass Smoke Rating s2
EN50575 CPR Cable EuroClass Droplets Rating d1
EN50575 CPR Cable EuroClass Acidity Rating a1
Environmental Space Fire Retardant Low Smoke Zero Halogen (FRLSZH)
Flame Test Method EN 50399 | IEC 60332-3
Smoke Test Method IEC 61034-2

Packaging and Weights

Cable weight 62.994 kg/km | 42.33 lb/kft
Packaging Type Reel

Regulatory Compliance/Certifications

Agency Classification
CENELEC EN 50575 compliant, Declaration of Performance (DoP) available
ROHS Compliant
CHINA-ROHS Below maximum concentration value
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance

Product Classification

Regional Availability EMEA
Portfolio NETCONNECT®
Product Type Twisted pair cable

General Specifications

ANSI/TIA Category 7A
Cable Component Type Horizontal
Cable Type S/FTP (shielded)
Conductor Type, singles Solid
Conductors, quantity 8
Jacket Color White
Pairs, quantity 4
Transmission Standards ANSI/TIA-568.2-D | IEC 61156-7 | ISO/IEC 11801 Class FA

Dimensions

Cable Length 1000.049 m | 3281 ft
Cable Length Tolerance ±5%
Diameter Over Conductor 1.501 mm | 0.0591 in
Diameter Over Jacket, nominal 7.798 mm | 0.307 in
Jacket Thickness 0.635 mm | 0.025 in
Conductor Gauge, singles 22 AWG

Electrical Specifications

Characteristic Impedance 100 ohm
Coupling Attenuation Type I
dc Resistance Unbalance, maximum 2 %
dc Resistance, maximum 6.51 ohms/100 m | 1.984 ohms/100 ft
Delay Skew, maximum 12 ns
Mutual Capacitance at Frequency 4.1 nF/100 m @ 1 kHz
Nominal Velocity of Propagation (NVP) 80 %
Operating Frequency, maximum 1200 MHz
Operating Voltage, maximum 80 V
Safety Voltage Rating 240 V
Segregation Class d

Material Specifications

Conductor Material Bare copper
Insulation Material Foamed polyethylene (FPE)
Jacket Material Low Smoke Fire Retardant Zero Halogen (LSFRZH)
Shield (Tape) Material Aluminum/Polyester

Mechanical Specifications

Pulling Tension, maximum 11.34 kg | 25 lb

Environmental Specifications

Installation temperature 0 °C to +50 °C (+32 °F to +122 °F)
Operating Temperature -20 °C to +60 °C (-4 °F to +140 °F)
Acid Gas Test Method IEC 60754-2
EN50575 CPR Cable EuroClass Fire Performance Dca
EN50575 CPR Cable EuroClass Smoke Rating s2
EN50575 CPR Cable EuroClass Droplets Rating d1
EN50575 CPR Cable EuroClass Acidity Rating a1
Environmental Space Fire Retardant Low Smoke Zero Halogen (FRLSZH)
Flame Test Method EN 50399 | IEC 60332-3
Smoke Test Method IEC 61034-2

Packaging and Weights

Cable weight 62.994 kg/km | 42.33 lb/kft
Packaging Type Reel
Click on image to enlarge.
Click on image to enlarge.

Regulatory Compliance/Certifications

Agency Classification
CENELEC EN 50575 compliant, Declaration of Performance (DoP) available
ROHS Compliant
CHINA-ROHS Below maximum concentration value
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
