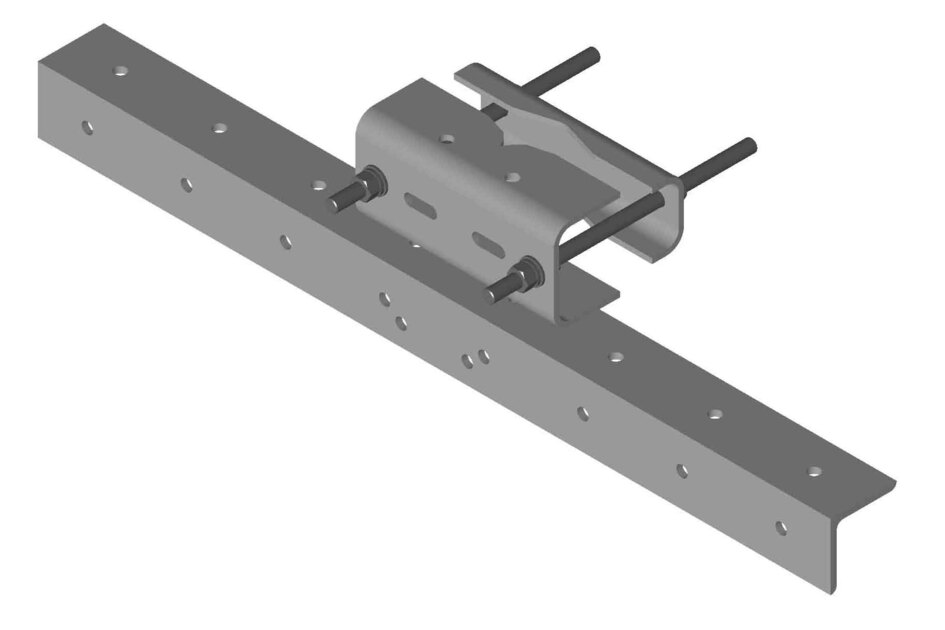

MD-SSA4
Tower Leg Mounted Microwave Antenna Channel Support Kit, 48 in
Specifications
Product Classification
| Product Type | Microwave strut support |
General Specifications
| Mounting | Straight or tapered legs up to 203.2 mm (8 in) OD |
| Pipe, quantity | 0 |
| Tower Taper | Non-tapered |
Dimensions
| Height | 152.4 mm | 6 in |
| Width | 1219.2 mm | 48 in |
| Length | 203.2 mm | 8 in |
| Mounting Diameter, maximum | 203.2 mm | 8 in |
Material Specifications
| Material Type | Hot dip galvanized steel |
Mechanical Specifications
| Wind Rating | For Specifications, please contact your local ANDREW representative |
Packaging and Weights
| Included | Angle | Attachment hardware | Clamps |
| Packaging quantity | 1 |
| Weight, net | 29.5 kg | 65.036 lb |
Regulatory Compliance/Certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant/Exempted |
CHINA-ROHS
|
Above maximum concentration value |
| UK-ROHS | Compliant/Exempted |
Product Classification
| Product Type | Microwave strut support |
General Specifications
| Mounting | Straight or tapered legs up to 203.2 mm (8 in) OD |
| Pipe, quantity | 0 |
| Tower Taper | Non-tapered |
Dimensions
| Height | 152.4 mm | 6 in |
| Width | 1219.2 mm | 48 in |
| Length | 203.2 mm | 8 in |
| Mounting Diameter, maximum | 203.2 mm | 8 in |
Material Specifications
| Material Type | Hot dip galvanized steel |
Mechanical Specifications
| Wind Rating | For Specifications, please contact your local ANDREW representative |
Packaging and Weights
| Included | Angle | Attachment hardware | Clamps |
| Packaging quantity | 1 |
| Weight, net | 29.5 kg | 65.036 lb |
Regulatory Compliance/Certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant/Exempted |
|
CHINA-ROHS
|
Above maximum concentration value |
| UK-ROHS | Compliant/Exempted |
