RT-MPT-3
Base Product: TRIPOD-MOUNTS

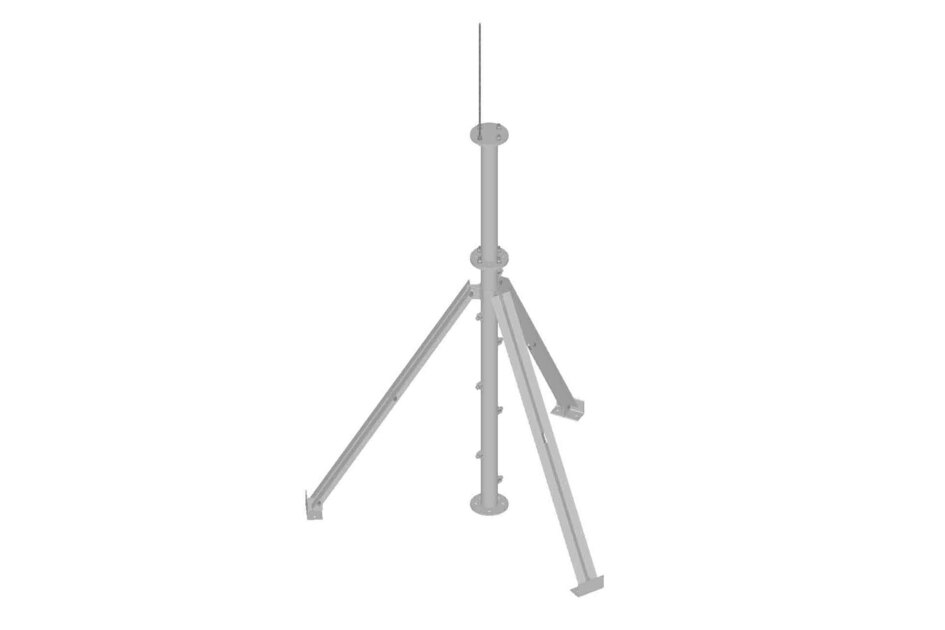

Tripod Assembly, 3 m mast
Specifications
Product Classification
| Product Type | Tripod mount |
General Specifications
| Mounting | Surfaces |
| Pipe, quantity | 1 |
Dimensions
| Height | 2997.2 mm | 118 in |
| Width | 1219.2 mm | 48 in |
| Length | 1.219 m | 4 ft |
| Pipe Length | 2997.2 mm | 118 in |
| Pipe Outer Diameter | 114.3 mm | 4.5 in |
Material Specifications
| Material Type | Hot dip galvanized steel |
Mechanical Specifications
| Wind Rating | For Specifications, please contact your local ANDREW representative |
Packaging and Weights
| Included | Brackets | Hardware | Pipe |
| Packaging quantity | 1 |
| Weight, net | 172.4 kg | 380.076 lb |
Regulatory Compliance/Certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
CHINA-ROHS
|
Below maximum concentration value |
| UK-ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
Product Classification
| Product Type | Tripod mount |
General Specifications
| Mounting | Surfaces |
| Pipe, quantity | 1 |
Dimensions
| Height | 2997.2 mm | 118 in |
| Width | 1219.2 mm | 48 in |
| Length | 1.219 m | 4 ft |
| Pipe Length | 2997.2 mm | 118 in |
| Pipe Outer Diameter | 114.3 mm | 4.5 in |
Material Specifications
| Material Type | Hot dip galvanized steel |
Mechanical Specifications
| Wind Rating | For Specifications, please contact your local ANDREW representative |
Packaging and Weights
| Included | Brackets | Hardware | Pipe |
| Packaging quantity | 1 |
| Weight, net | 172.4 kg | 380.076 lb |
Regulatory Compliance/Certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
|
CHINA-ROHS
|
Below maximum concentration value |
| UK-ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
