912MCLICK

Base Product: CLICK-SERIES-HANGERS

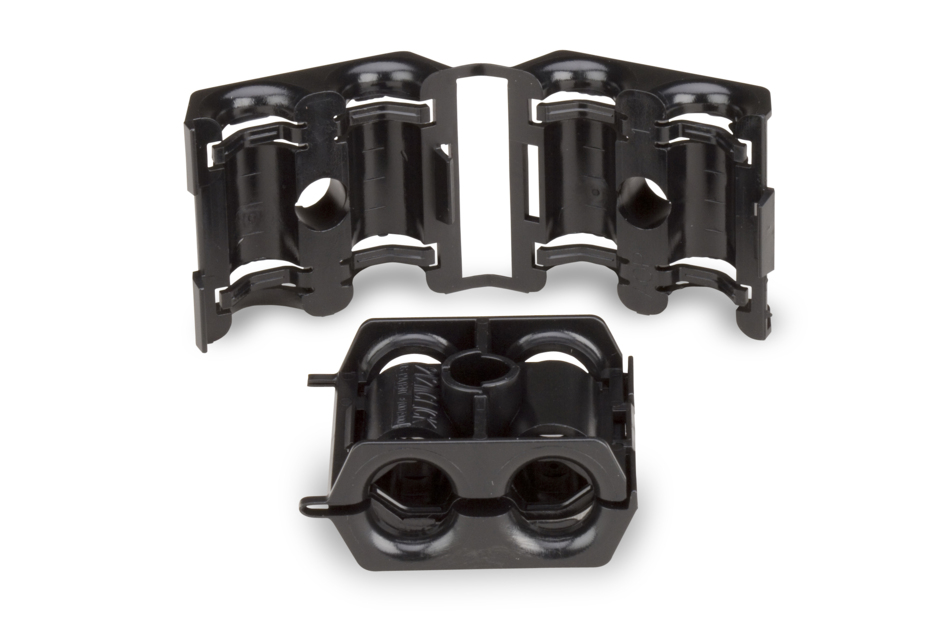

Miniature Click-on Hanger for 9–12 mm cable - Hardware Sold Separately

Find a Partner
Specifications
Finish making your selections or clear them to view relevant specifications.

Product Classification

Product Type Hanger kit
Product Brand HELIAX®
Ordering Note CommScope® standard product (Global)

General Specifications

Cables per Hanger 2
Color Black
Hanger Type Click-on hanger
Mounting M8 through hole

Dimensions

Maximum Stack Height 3
Height 38.1 mm | 1.500 in
Width 20.1 mm | 0.791 in
Length 42.9 mm | 1.689 in
Compatible Cable Diameter Range 9–12 mm
Compatible Diameter, maximum 12 mm | 0.472 in
Compatible Diameter, minimum 9 mm | 0.354 in
Nominal Size 1/4 in | 3/8 in

Electrical Specifications

Return Loss Effect, maximum 0.1 dB
DTF Effect, maximum 0.1 dB

Material Specifications

Material Type Engineered plastic

Mechanical Specifications

Vibration Survival ≥4 hours at resonant frequency

Environmental Specifications

Operating Temperature -40 °C to +85 °C (-40 °F to +185 °F)
Environmental Strength Capability Double cable weight
UV Resistance, minimum with no degradation ≥100 hours exposure in accelerated UV life chamber

Packaging and Weights

Height, packed 15.2 cm | 5.984 in
Width, packed 20.3 cm | 7.992 in
Length, packed 2.5 cm | 0.984 in
Packaging quantity 10
Weight, gross 0.13 kg | 0.287 lb

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant
CHINA-ROHS Below maximum concentration value
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
UK-ROHS Compliant
