SSH-1117

Base Product: SSH-SERIES-HANGERS

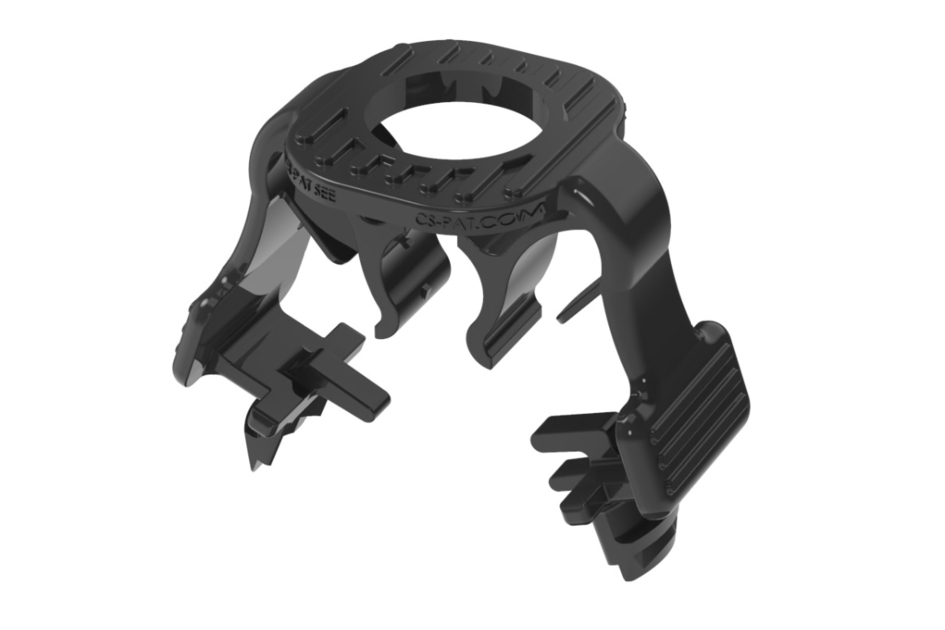

PIM-Guard®, SnapTak® Adjustable Hanger, Gen 2. Fits 11.0 mm to 17.0 mm Cables – PIM Free Polymer Construction. No Grommets Required

Find a Partner
Specifications
Finish making your selections or clear them to view relevant specifications.

Product Classification

Product Type Hanger kit
Product Brand PIM-Guard® | SnapTak®
Ordering Note CommScope® standard product (Global)

General Specifications

Accessories Hangers
Cables per Hanger 1
Color Black
Hanger Type Snap-in hanger
Mounting 3/4 in drilled cable ladder

Dimensions

Maximum Stack Height 3
Maximum Stack Height, Coaxial 3
Height 48.4 mm | 1.906 in
Width 34 mm | 1.339 in
Length 59.8 mm | 2.354 in
Compatible Cable Diameter Range 11–17 mm
Compatible Diameter, maximum 17 mm | 0.669 in
Compatible Diameter, minimum 11 mm | 0.433 in
Nominal Size NA

Electrical Specifications

Return Loss Effect, maximum 0.1 dB
DTF Effect, maximum 0.1 dB

Material Specifications

Material Type Engineered plastic

Mechanical Specifications

Vibration Survival ≥4 hours at resonant frequency

Environmental Specifications

Operating Temperature -40 °C to +85 °C (-40 °F to +185 °F)
Environmental Strength Capability Double cable weight
UV Resistance, minimum with no degradation ≥1000 hours exposure in accelerated UV life chamber

Packaging and Weights

Height, packed 3.1 cm | 1.22 in
Width, packed 20.3 cm | 7.992 in
Length, packed 25.4 cm | 10 in
Packaging quantity 10
Weight, gross 0.36 kg | 0.794 lb

Regulatory Compliance/Certifications

Agency Classification
ROHS Compliant
CHINA-ROHS Below maximum concentration value
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
UK-ROHS Compliant
