MCPT-114158-S

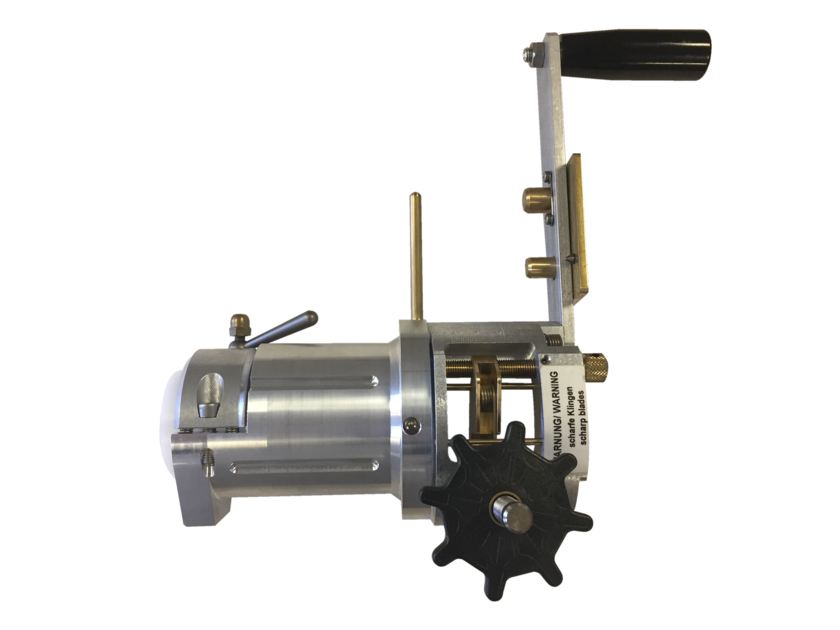

Manual Cable Preparation Tool for 1-1/4 in and 1-5/8 in coaxial cable and 4.3-10 connectors
Specifications
Finish making your selections or clear them to view relevant specifications.
How to Buy
Features and Benefits
  • Only compatible with connectors A6HF-S, A6HM-S, A7HF-S, A7HM-S
Specifications

Product Classification

Product Type Tool
Ordering Note CommScope® standard product (Global)

General Specifications

Application Prepares cable for connector attachment
Cutting Blade Life 200 cable preparations
Cutting Blades Included 1
Jacket Blades Included 1
Tool Type Manual cable preparation tool

Dimensions

Nominal Size 1-1/4 in | 1-5/8 in

Outline Drawing

Click on image to enlarge.

Material Specifications

Material Type Aluminum

Packaging and Weights

Height, packed 279.4 mm | 11 in
Width, packed 114.3 mm | 4.5 in
Length, packed 299.72 mm | 11.8 in
Packaging quantity 1
Weight, gross 1.8 kg | 3.968 lb

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant
CHINA-ROHS Below maximum concentration value
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance

Product Classification

Product Type Tool
Ordering Note CommScope® standard product (Global)

General Specifications

Application Prepares cable for connector attachment
Cutting Blade Life 200 cable preparations
Cutting Blades Included 1
Jacket Blades Included 1
Tool Type Manual cable preparation tool

Dimensions

Nominal Size 1-1/4 in | 1-5/8 in

Material Specifications

Material Type Aluminum

Packaging and Weights

Height, packed 279.4 mm | 11 in
Width, packed 114.3 mm | 4.5 in
Length, packed 299.72 mm | 11.8 in
Packaging quantity 1
Weight, gross 1.8 kg | 3.968 lb
Click on image to enlarge.

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant
CHINA-ROHS Below maximum concentration value
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
