MTC3979C
Base Product: CUSTOM-PLATFORM-KITS

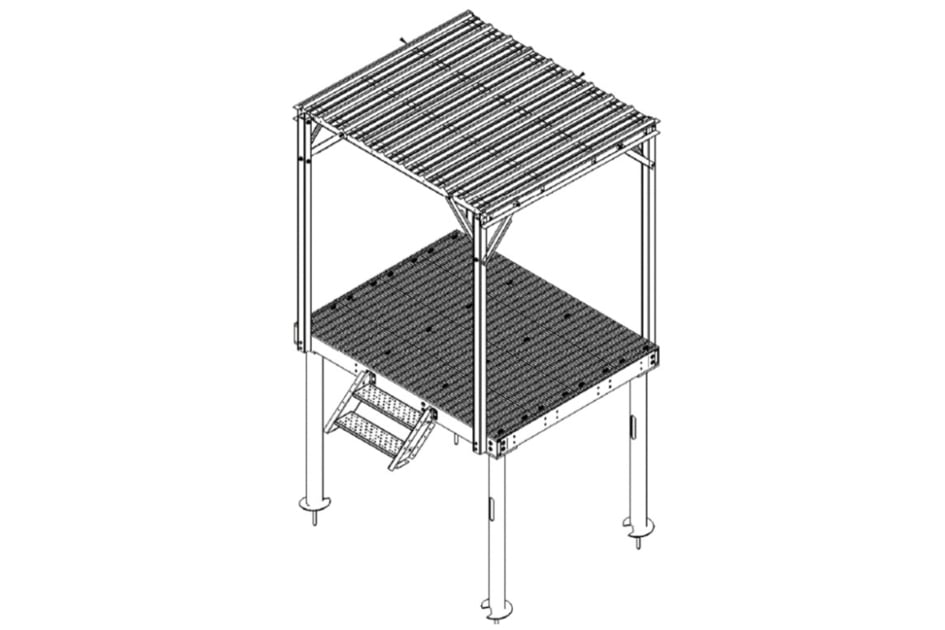

Equipment Platform plus Canopy, 8 ft x 10 ft, base with four 7ft x 6in OD Helicals
Specifications
Product Classification
| Product Type | Equipment platform system |
General Specifications
| Legs, quantity | 4 |
Dimensions
| Height | 2844.8 mm | 112 in |
| Width | 2438.4 mm | 96 in |
| Length | 3048 mm | 120 in |
Material Specifications
| Material Type | Hot dip galvanized steel |
Mechanical Specifications
| Load Capacity | Up to 10,000 lb (4536 kg) loading |
Packaging and Weights
| Included | Frame | Grating | Hardware | Legs |
| Packaging quantity | 1 |
| Weight, net | 1197.5 kg | 2640.032 lb |
Regulatory Compliance/Certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
Product Classification
| Product Type | Equipment platform system |
General Specifications
| Legs, quantity | 4 |
Dimensions
| Height | 2844.8 mm | 112 in |
| Width | 2438.4 mm | 96 in |
| Length | 3048 mm | 120 in |
Material Specifications
| Material Type | Hot dip galvanized steel |
Mechanical Specifications
| Load Capacity | Up to 10,000 lb (4536 kg) loading |
Packaging and Weights
| Included | Frame | Grating | Hardware | Legs |
| Packaging quantity | 1 |
| Weight, net | 1197.5 kg | 2640.032 lb |
Regulatory Compliance/Certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
