MPH-001

Base Product: HOISTING-GRIP-ANCHORS

Monopole Port Hole Grip Anchor - Fits hand holes 2.25" to 5.25" deep with thickness up to .5"

Find a Partner

Specifications

Finish making your selections or clear them to view relevant specifications.

Download

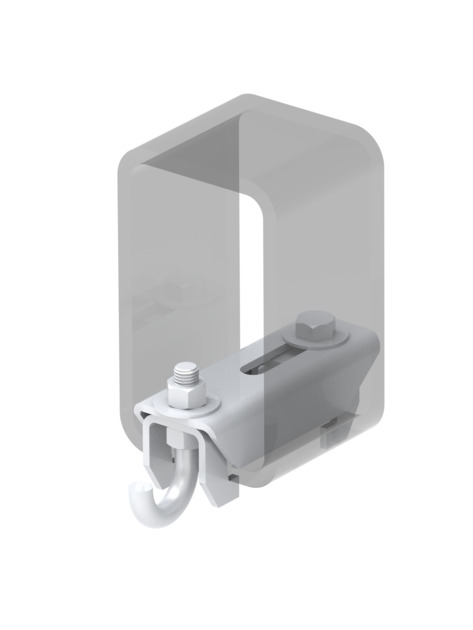

MPH-001 Bottom Mounted

Features and Benefits

Engineered attachment anchor point solution for monopole port holes to accommodate and support cable via the wire mesh grip.Supports all cables types anchored with a hoisting grip including Hybrid cable.

- Maximum Load Capacity 1600 LBS
- Use for Cable Support Only
- Do not use for Hoisting
- Hooks must be fully engaged with Monopole Port Liner
- Installation to be inspected by a competent person

Specifications

Product Classification

Portfolio	CommScope®
Product Type	Hoisting Grip Anchor
Warranty	One year

General Specifications

Cable Runs, quantity	1
Mounting	Monopole port hole

Dimensions

Height	119.380 mm \| 4.7 in
Width	78.740 mm \| 3.1 in
Length	269.240 mm \| 10.6 in
Mounting Diameter, maximum	133.350 mm \| 5.25 in
Mounting Diameter, minimum	57.150 mm \| 2.25 in

Material Specifications

Material Type

Hot dip galvanized steel

Packaging and Weights

Packaging quantity	1
Weight, net	12.46 kg \| 27.470 lb
