FGS-MSHA

Base Product

Available in:
Asia
Australia/New Zealand
EMEA
Latin America
North America

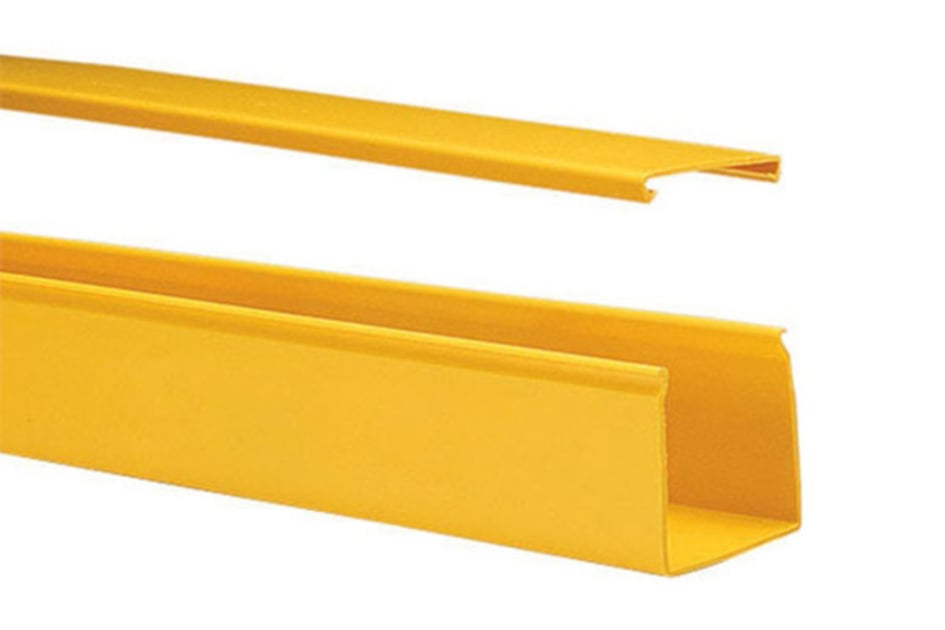

FiberGuide® Horizontal Straight Section with cover, 2x2in

Configure Product Variants

Find a Partner

Specifications

Finish making your selections or clear them to view relevant specifications.

Download

Your web browser (Internet Explorer 11 or lower) is out of date and the functions below will not work with Internet Explorer.
Update your browser for more security, speed, functionality and experience on this site.

Update browser

Product Variants

Configure and display product variants of FGS-MSHA by selecting options

	Product	Product Feature	Regional Availability	Product Type	System Dimensions	Length	Color	Section Type
	FGS-MSHA-C FiberGuide® Horizontal Straight Section with Cover, 2x2in, Yellow Specifications	Snap-together design	Asia \| Australia/New Zealand \| EMEA \| Latin America \| North America	Solid straight with snap-on cover	51 mm x 51 mm (2 in x 2 in)	1829 mm \| 72.008 in	Yellow	Straight section
	FGSB-MSHA-C FiberGuide® Horizontal Straight Section with Snap-On Cover, 2x2 in, Black Specifications	Snap-together design	Asia \| Australia/New Zealand \| EMEA \| Latin America \| North America	Solid straight with snap-on cover	51 mm x 51 mm (2 in x 2 in)	1829 mm \| 72.008 in	Black	Straight section

Features and Benefits

Engineers and installers can benefit from the large suite of available FiberGuide design tools
FiberGuide is an optical raceway system for central office, mobile switching center and data center applications
FiberGuide maintains a minimum bend radius throughout the entire system, regardless the system size
FiberGuide products are designed and manufactured to ensure total off-frame fiber cable protection

Specifications

Product Classification

Regional Availability	Asia \| Australia/New Zealand \| EMEA \| Latin America \| North America
Portfolio	CommScope®
Product Type	Straight section
Product Brand	FiberGuide®
Product Series	FGS

General Specifications

Color	Yellow
Orientation	Horizontal
Section Type	Straight section

Dimensions

System Dimensions

51 mm x 51 mm (2 in x 2 in)

Environmental Specifications

Flammability Rating	CSA S143 \| UL 2024 \| UL 94 V-0
Halogen Characteristics	Blue Angel \| TCO '99 \| WEEE
Safety Standard	CSA \| UL

Regulatory Compliance/Certifications

Agency	Classification
ROHS	Compliant
CHINA-ROHS	Below maximum concentration value
REACH-SVHC	Compliant as per SVHC revision on www.commscope.com/ProductCompliance
UK-ROHS	Compliant
