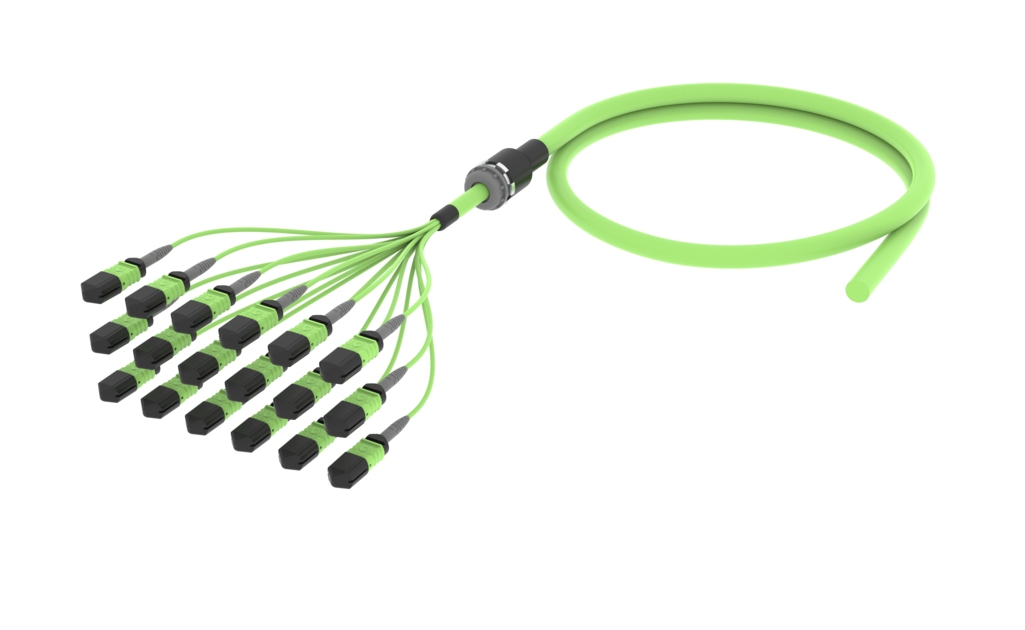

Ultra Low Loss (ULL) OM5 MPO8 UPC (pinned) to Unconnectorized Fiber Trunk Cable Assembly, 144-Fiber, Armored Indoor Dual Rated (OFNR/LSZH)

Configure Product Variants

Find a Partner

Specifications

Finish making your selections or clear them to view relevant specifications.

Product Variants

Configure and display product variants of UKVQXUCTM by selecting options

Your web browser (Internet Explorer 11 or lower) is out of date and the functions below will not work with Internet Explorer.
Update your browser for more security, speed, functionality and experience on this site.

Update browser

Jacket Color Breakout Length/Option Cord Length m ft

Part Number	Jacket Color	Breakout Length/Option	Cord Length
No configured items found.

Specifications

Product Classification

Regional Availability	Asia \| Australia/New Zealand \| China \| Europe \| India \| Latin America \| Middle East/Africa \| North America
Portfolio	CommScope®
Product Type	Fiber trunk cable assembly
Product Brand	Propel \| SYSTIMAX ULL
Ordering Note	For additional jacket colors, please contact a CommScope Sales Representative \| For lengths greater than 999 ft (304 m), orders must be in meters \| Minimum length may vary based on cable configuration

General Specifications

Connector A, quantity	18
Color, boot A	Gray
Color, connector A	Lime green
Connector B, quantity	0
Construction Type	Armored \| Stranded
Furcation Color	Lime green
Interface, Connector A	MPO-08/UPC Male
Interface, Connector B	Unterminated
Jacket Color	Lime green
Polarity	Method B Enhanced (ULL)
Fibers per Subunit, quantity	8
Total Fibers, quantity	144

Dimensions

Breakout Length	22 in
Cable Assembly Length Range (m)	3 – 305
Cable Assembly Length Range (ft)	10 – 999

Ordering Tree

Click on image to enlarge.

Mechanical Specifications

Cable Retention Strength, maximum

11.24 lb @ 0 ° | 4.40 lb @ 90 °

Optical Specifications

Fiber Mode	Multimode
Fiber Type	OM5, LazrSPEED®

Environmental Specifications

Operating Temperature	-10 °C to +60 °C (+14 °F to +140 °F)
EN50575 CPR Cable EuroClass Fire Performance	Dca
Environmental Space	Dual Rated LSZH/Riser \| Indoor

Regulatory Compliance/Certifications

Agency	Classification
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
ROHS	Compliant/Exempted
CHINA-ROHS	Above maximum concentration value
REACH-SVHC	Compliant as per SVHC revision on www.commscope.com/ProductCompliance
UK-ROHS	Compliant/Exempted
