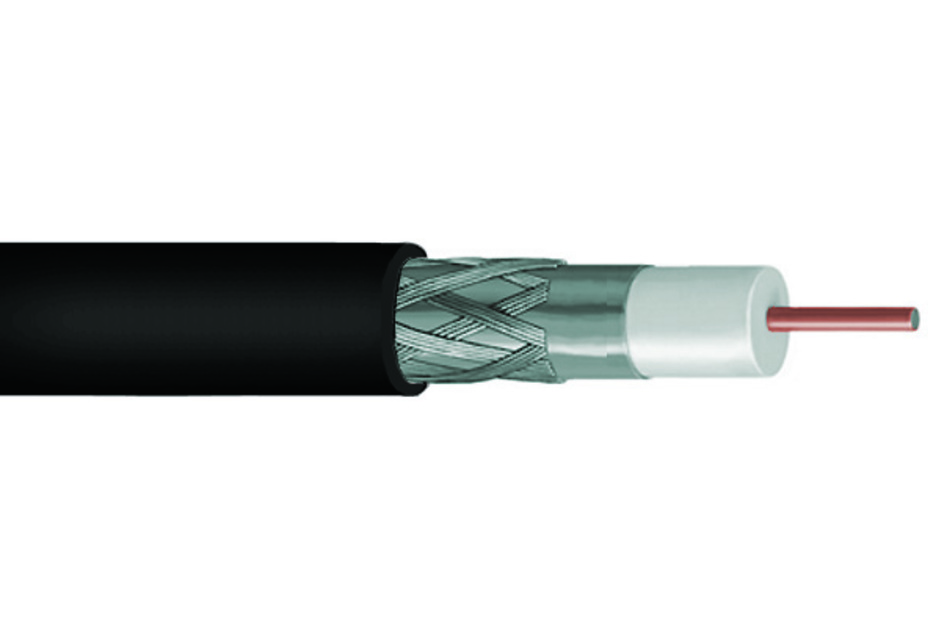

RG 6 Type 90% Braid Plenum Video Coaxial Cable, black jacket, 1000 ft (305 m) reel

Find a Partner
Specifications
Finish making your selections or clear them to view relevant specifications.

Product Classification

Regional Availability Asia | Australia/New Zealand | EMEA | Latin America | North America
Portfolio CommScope®
Product Type Coaxial video cable

General Specifications

Product Number 2276V
Cable Type Series 6
Center Conductor Type Solid
Construction Type Non-armored
Jacket Color Black

Dimensions

Cable Length 304.8 m | 1000 ft
Diameter Over Center Conductor Tolerance ±0.0004 in
Diameter Over Center Conductor, specific 0.0403 in per 1 strand
Diameter Over Dielectric 4.318 mm | 0.17 in
Diameter Over Jacket, nominal 6.02 mm | 0.237 in
Diameter Over Jacket Tolerance ±0.006 in
Diameter Over Shield (Braid) 5.207 mm | 0.205 in
Jacket Thickness 0.381 mm | 0.015 in
Jacket Thickness, minimum spot 0.254 mm | 0.01 in
Center Conductor Gauge 18 AWG
Shield (Braid) Gauge 34 AWG

Electrical Specifications

Capacitance 50.853 pF/m | 15.5 pF/ft
Characteristic Impedance 75 ohm
Characteristic Impedance Tolerance ±3 ohm
Conductor dc Resistance 93.832 ohms/km | 28.6 ohms/kft
Dielectric Strength, conductor to shield 2500 Vdc
Jacket Spark Test Voltage 2500 Vac
Nominal Velocity of Propagation (NVP) 84 %
Shield dc Resistance 20.997 ohms/km | 6.4 ohms/kft
Structural Return Loss 15 dB @ 1000–3000 MHz | 20 dB @ 5–1000 MHz
Structural Return Loss Test Method 100% Swept Tested

Attenuation

Frequency Attenuation (dB/100 m) Attenuation (dB/100 ft)
1.0 MHz 1.250 0.380
10.0 MHz 2.300 0.700
50.0 MHz 4.850 1.480
100.0 MHz 6.590 2.010
200.0 MHz 9.380 2.860
400.0 MHz 13.870 4.230
700.0 MHz 19.550 5.960
900.0 MHz 22.830 6.960
1000.0 MHz 24.440 7.450
1200.0 MHz 27.060 8.250
1450.0 MHz 30.640 9.340
1800.0 MHz 35.060 10.690
2200.0 MHz 37.850 11.540
2500.0 MHz 38.380 11.700
3000.0 MHz 42.870 13.070

Material Specifications

Center Conductor Material Copper-clad steel wire
Dielectric Material Foam FEP
Jacket Material PVC
Shield (Braid) Coverage 90 %
Shield (Braid) Material Aluminum
Shield (Tape) Material Aluminum/Poly, bonded

Mechanical Specifications

Minimum Bend Radius, loaded, times 20 times
Minimum Bend Radius, unloaded, times 10 times

Environmental Specifications

Operating Temperature -40 °C to +75 °C (-40 °F to +167 °F)
Environmental Space Plenum
Temperature Rating, UL 75 °C | 167 °F
Flame Test Method CMP
Safety Standard ETL | cETL

Packaging and Weights

Cable weight 41.669 kg/km | 28 lb/kft
Packaging Type Reel

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system

Product Classification

Regional Availability Asia | Australia/New Zealand | EMEA | Latin America | North America
Portfolio CommScope®
Product Type Coaxial video cable

General Specifications

Product Number 2276V
Cable Type Series 6
Center Conductor Type Solid
Construction Type Non-armored
Jacket Color Black

Dimensions

Cable Length 304.8 m | 1000 ft
Diameter Over Center Conductor Tolerance ±0.0004 in
Diameter Over Center Conductor, specific 0.0403 in per 1 strand
Diameter Over Dielectric 4.318 mm | 0.17 in
Diameter Over Jacket, nominal 6.02 mm | 0.237 in
Diameter Over Jacket Tolerance ±0.006 in
Diameter Over Shield (Braid) 5.207 mm | 0.205 in
Jacket Thickness 0.381 mm | 0.015 in
Jacket Thickness, minimum spot 0.254 mm | 0.01 in
Center Conductor Gauge 18 AWG
Shield (Braid) Gauge 34 AWG

Electrical Specifications

Capacitance 50.853 pF/m | 15.5 pF/ft
Characteristic Impedance 75 ohm
Characteristic Impedance Tolerance ±3 ohm
Conductor dc Resistance 93.832 ohms/km | 28.6 ohms/kft
Dielectric Strength, conductor to shield 2500 Vdc
Jacket Spark Test Voltage 2500 Vac
Nominal Velocity of Propagation (NVP) 84 %
Shield dc Resistance 20.997 ohms/km | 6.4 ohms/kft
Structural Return Loss 15 dB @ 1000–3000 MHz | 20 dB @ 5–1000 MHz
Structural Return Loss Test Method 100% Swept Tested

Attenuation

Frequency Attenuation (dB/100 m) Attenuation (dB/100 ft)
1.0 MHz 1.250 0.380
10.0 MHz 2.300 0.700
50.0 MHz 4.850 1.480
100.0 MHz 6.590 2.010
200.0 MHz 9.380 2.860
400.0 MHz 13.870 4.230
700.0 MHz 19.550 5.960
900.0 MHz 22.830 6.960
1000.0 MHz 24.440 7.450
1200.0 MHz 27.060 8.250
1450.0 MHz 30.640 9.340
1800.0 MHz 35.060 10.690
2200.0 MHz 37.850 11.540
2500.0 MHz 38.380 11.700
3000.0 MHz 42.870 13.070

Material Specifications

Center Conductor Material Copper-clad steel wire
Dielectric Material Foam FEP
Jacket Material PVC
Shield (Braid) Coverage 90 %
Shield (Braid) Material Aluminum
Shield (Tape) Material Aluminum/Poly, bonded

Mechanical Specifications

Minimum Bend Radius, loaded, times 20 times
Minimum Bend Radius, unloaded, times 10 times

Environmental Specifications

Operating Temperature -40 °C to +75 °C (-40 °F to +167 °F)
Environmental Space Plenum
Temperature Rating, UL 75 °C | 167 °F
Flame Test Method CMP
Safety Standard ETL | cETL

Packaging and Weights

Cable weight 41.669 kg/km | 28 lb/kft
Packaging Type Reel

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
