2120124-3 | O-024-LA-5Y-M06NS/30G/GY

Base Product: O-LA

  • Available in:
  • India

Fiber Optic Outdoor 24 Fiber Multi-tube Cable with Corrugated Steel Armoring, OM3, with HDPE Jacket

Find a Partner
Specifications
Finish making your selections or clear them to view relevant specifications.
Features and Benefits
  • Designed for use in backbone cabling, campus site cabling, outdoor ducts or direct burial cabling applications
  • Designed with a gel filled loose tube construction to ensure protection against moisture ingress

Product Classification

Regional Availability India
Portfolio CommScope®
Product Type Fiber OSP cable
Product Series O-LA

General Specifications

Armor Type Corrugated steel
Cable Type Loose tube
Subunit Type Gel-filled
Filler, quantity 2
Jacket Color Black
Jacket Marking Meters
Strength Members Central fiber reinforced polymer (FRP) rod
Fibers per Subunit, quantity 24
Total Fiber Count 24

Dimensions

Cable Length 2000 m | 6561.68 ft
Diameter Over Jacket 15.5 mm | 0.61 in

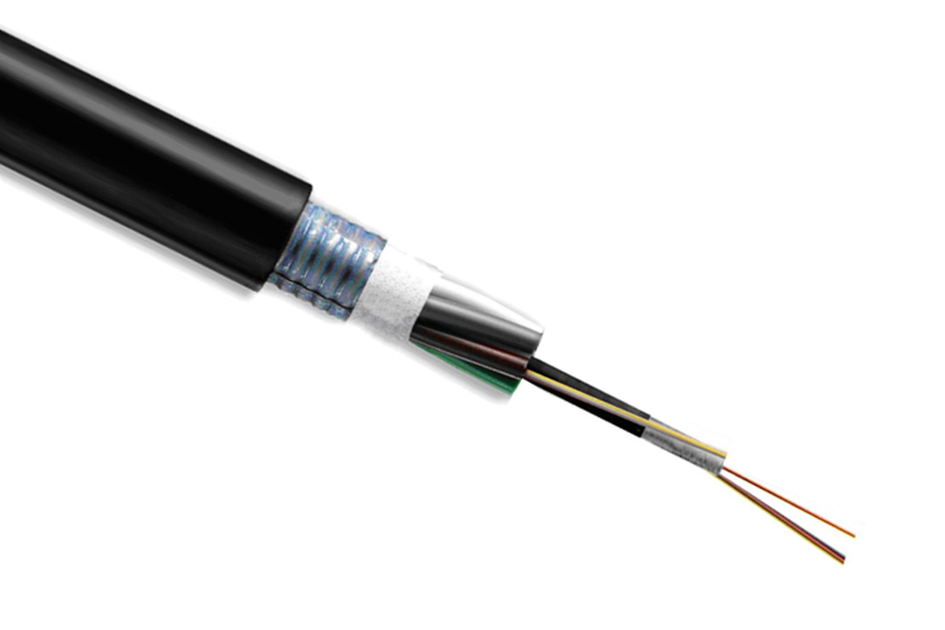

Representative Image

Click on image to enlarge.

Material Specifications

Jacket Material High density polyethylene (HDPE)

Mechanical Specifications

Minimum Bend Radius, loaded 310 mm | 12.205 in
Minimum Bend Radius, unloaded 248 mm | 9.764 in
Tensile Load, short term, maximum 4000 N | 899.236 lbf
Cable Crush Resistance, maximum 44 N/mm | 251.246 lb/in
Flex 25 cycles

Optical Specifications

Fiber Type OM3

Optical Specifications, Wavelength Specific

Attenuation, maximum 1.00 dB/km @ 1,300 nm | 3.00 dB/km @ 850 nm
Standards Compliance ANSI/TIA-568.E-3 | TIA-492AAAC (OM3)

Environmental Specifications

Operating Temperature -20 °C to +70 °C (-4 °F to +158 °F)

Packaging and Weights

Cable weight 215 kg/km | 144.473 lb/kft

Regulatory Compliance/Certifications

Agency Classification
ROHS Compliant
CHINA-ROHS Below maximum concentration value
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
UK-ROHS Compliant
