760253419 | KJX-6A

  • Available in:
  • Asia
  • Australia/New Zealand
  • EMEA

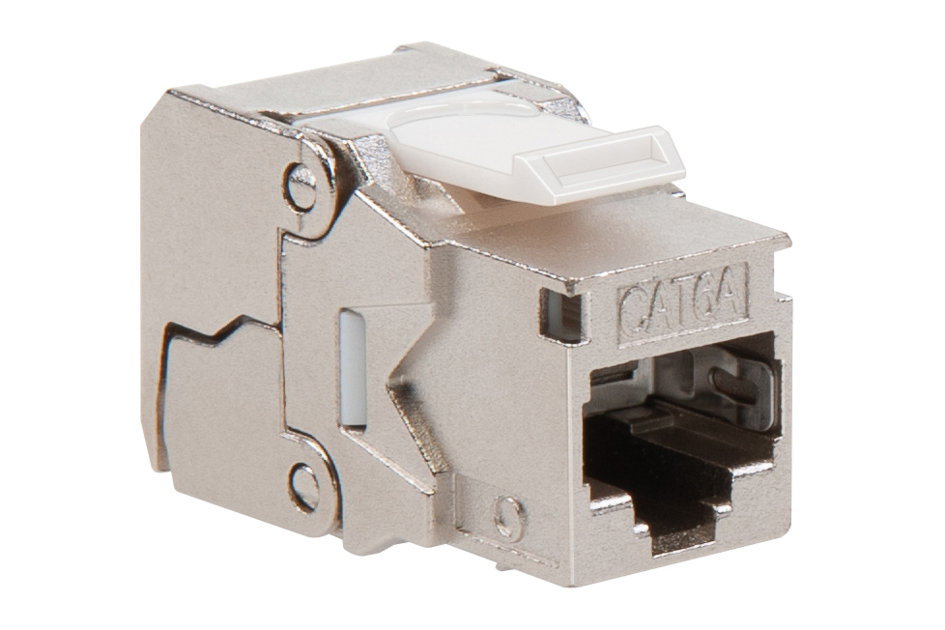

KJ Series Modular Jack, RJ45, Cat6A Shielded, Silver

Find a Partner
Specifications
Finish making your selections or clear them to view relevant specifications.
Download
Features and Benefits
  • Robust 2 connector PL standards compliant
  • 4PPoE compliance in accordance with IEEE 802.bt Type 4
  • ISO/TIA Component up to 500MHz
  • Solution for IoT an PoE application
  • Tool-free termination
  • Keystone footprint

Product classification

Regional Availability Asia | Australia/New Zealand | EMEA
Portfolio CommScope®
Product Type Modular jack

General Specifications

ANSI/TIA Category 6A
Application 4 connector CH standards compliant >35m | Not recommended for use in shallow wall boxes
Cable Type Shielded
Color Silver
Conductor Type Solid | Stranded
Integrated Dust Cover Type None
Outlet Type Standard
Termination Type IDC
Transmission Standards ANSI/TIA-568.2-D | ISO/IEC 11801 Class EA
Wiring T568A | T568B

Dimensions

Panel Thickness, recommended 1.6 mm | 0.063 in
Height 21.5 mm | 0.846 in
Width 17.2 mm | 0.677 in
Depth 38.3 mm | 1.508 in
Compatible Cable Diameter, maximum 9 mm | 0.354 in
Contact Plating Thickness 1.27 µm
Compatible Conductor Gauge, solid 26–22 AWG
Compatible Conductor Gauge, stranded 24 AWG

Electrical Specifications

PoE Durability Supports IEEE 802.3bt Type 4 (90 W) applications greater than 3000 plug to jack mating cycles

Material Specifications

Contact Base Material Beryllium copper
Contact Plating Material Gold
Material Type Polycarbonate | Zamak

Mechanical Specifications

Plug to Jack Mating Cycles Complies to IEC 60603-7 series

Environmental Specifications

Operating Temperature -10 °C to +60 °C (+14 °F to +140 °F)
Flammability Rating UL 94 V-0

Packaging and Weights

Packaging quantity 12
Packaging Type Tray in box

Regulatory Compliance/Certifications

Agency Classification
CHINA-ROHS Below maximum concentration value
RCM Compliant to electrical safety & telecommunications requirements
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
ROHS Compliant
UK-ROHS Compliant
