1-1339120-3
- Available in:
- Asia
- Latin America
- North America

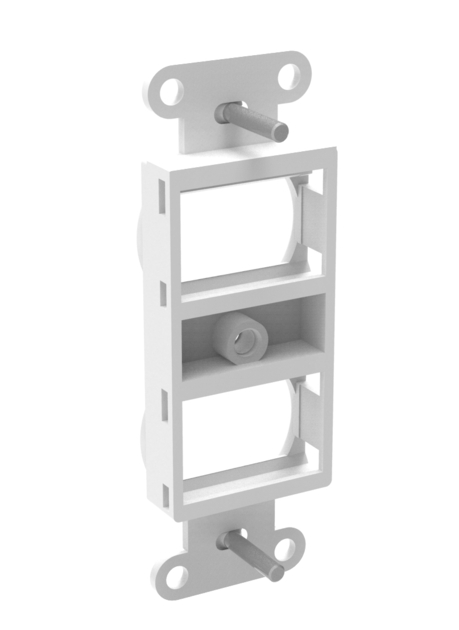

Mounting Strap, 4-ports, duplex, Alpine white
Specifications
Product Classification
| Regional Availability | Asia | Latin America | North America |
| Portfolio | CommScope® |
| Product Type | Mounting kit |
General Specifications
| Color | Alpine white |
| Faceplate Orientation | Vertical |
| Gangs, quantity | 2 |
| Port Capacity, maximum | 4 |
| Total Ports, quantity | 4 |
Dimensions
| Height | 103 mm | 4.055 in |
| Width | 34.04 mm | 1.340 in |
| Depth | 3.21 mm | 0.126 in |
Dimension Drawing
| Click on image to enlarge. |
Material Specifications
| Material Type | Acrylonitrile butadiene styrene (ABS) |
Packaging and Weights
| Included | Mounting screw (2) |
| Packaging quantity | 1 |
| Packaging Type | Bag |
Regulatory Compliance/Certifications
| Agency | Classification |
| ROHS | Compliant |
CHINA-ROHS
|
Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
| UK-ROHS | Compliant |
Product Classification
| Regional Availability | Asia | Latin America | North America |
| Portfolio | CommScope® |
| Product Type | Mounting kit |
General Specifications
| Color | Alpine white |
| Faceplate Orientation | Vertical |
| Gangs, quantity | 2 |
| Port Capacity, maximum | 4 |
| Total Ports, quantity | 4 |
Dimensions
| Height | 103 mm | 4.055 in |
| Width | 34.04 mm | 1.340 in |
| Depth | 3.21 mm | 0.126 in |
Material Specifications
| Material Type | Acrylonitrile butadiene styrene (ABS) |
Packaging and Weights
| Included | Mounting screw (2) |
| Packaging quantity | 1 |
| Packaging Type | Bag |
| Click on image to enlarge. |
Regulatory Compliance/Certifications
| Agency | Classification |
| ROHS | Compliant |
|
CHINA-ROHS
|
Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
| UK-ROHS | Compliant |
