760237460 | GSIC-1/2-ANT-XS-4.3.10-00-INT01

  • Available in:
  • Asia
  • Australia/New Zealand
  • EMEA
  • Latin America
  • North America

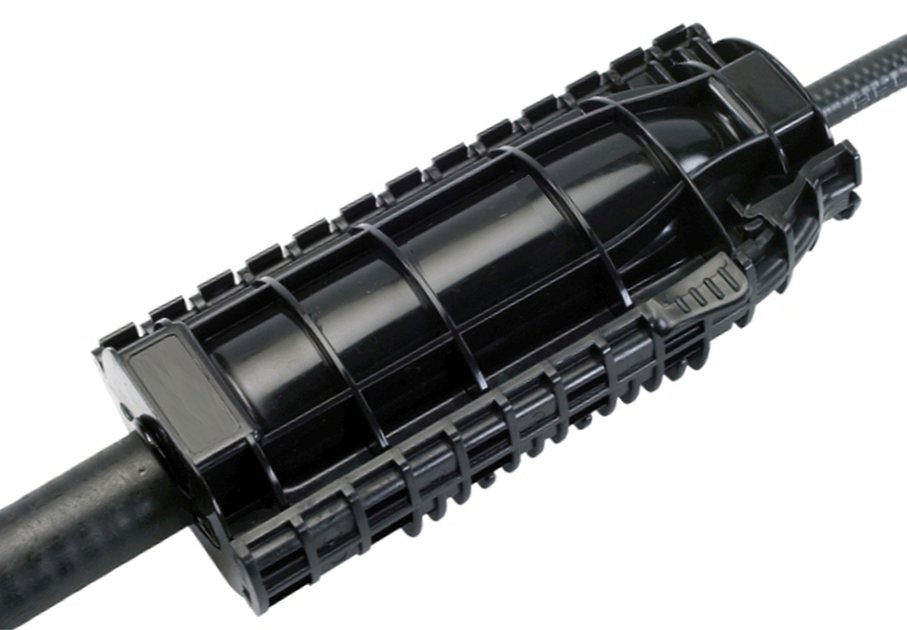

GSIC Weatherproofing Gel Sealed Antenna Transition Boot for 4.3-10 connector, 1/2 inch cable, small

Find a Partner
Specifications
Finish making your selections or clear them to view relevant specifications.
Features and Benefits
The GSIC gel sealed closure is a weatherproofing system for sealing cable connection points exposed to the outside environment, including jumper-to-antenna connectors, jumper-to-feeder connectors, grounding points and surge arrester connection, etc. The housing contains an innovative gel material and provides an efficient moisture block.

The ease of installation and the long-term protection makes it a reliable and cost-effective sealing solution for outside plant cables and connectors.
  • Gel-sealed weatherproofing boots for sealing coaxial cable connection points providing an efficient moisture block
  • Wraparound design eliminates the need to disconnect the connectors before installation
  • No tape, no mastics or tools required for installation and removal

Product Classification

Regional Availability Asia | Australia/New Zealand | EMEA | Latin America | North America
Product Type Weatherproofing boot
Product Series GSIC

General Specifications

Color Black

Dimensions

Length 55 mm | 2.165 in
Cable Diameter for Seal, maximum 17 mm | 0.669 in
Cable Diameter for Seal, minimum 13 mm | 0.512 in
Inner Diameter 26.6 mm | 1.047 in

Material Specifications

Material Type Engineered plastic

Environmental Specifications

Operating Temperature -40 °C to +70 °C (-40 °F to +158 °F)
Weatherproofing Method IP68

Packaging and Weights

Packaging quantity 1

Regulatory Compliance/Certifications

Agency Classification
ROHS Compliant
CHINA-ROHS Below maximum concentration value
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
UK-ROHS Compliant

Product Classification

Regional Availability Asia | Australia/New Zealand | EMEA | Latin America | North America
Product Type Weatherproofing boot
Product Series GSIC

General Specifications

Color Black

Dimensions

Length 55 mm | 2.165 in
Cable Diameter for Seal, maximum 17 mm | 0.669 in
Cable Diameter for Seal, minimum 13 mm | 0.512 in
Inner Diameter 26.6 mm | 1.047 in

Material Specifications

Material Type Engineered plastic

Environmental Specifications

Operating Temperature -40 °C to +70 °C (-40 °F to +158 °F)
Weatherproofing Method IP68

Packaging and Weights

Packaging quantity 1

Regulatory Compliance/Certifications

Agency Classification
ROHS Compliant
CHINA-ROHS Below maximum concentration value
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
UK-ROHS Compliant
