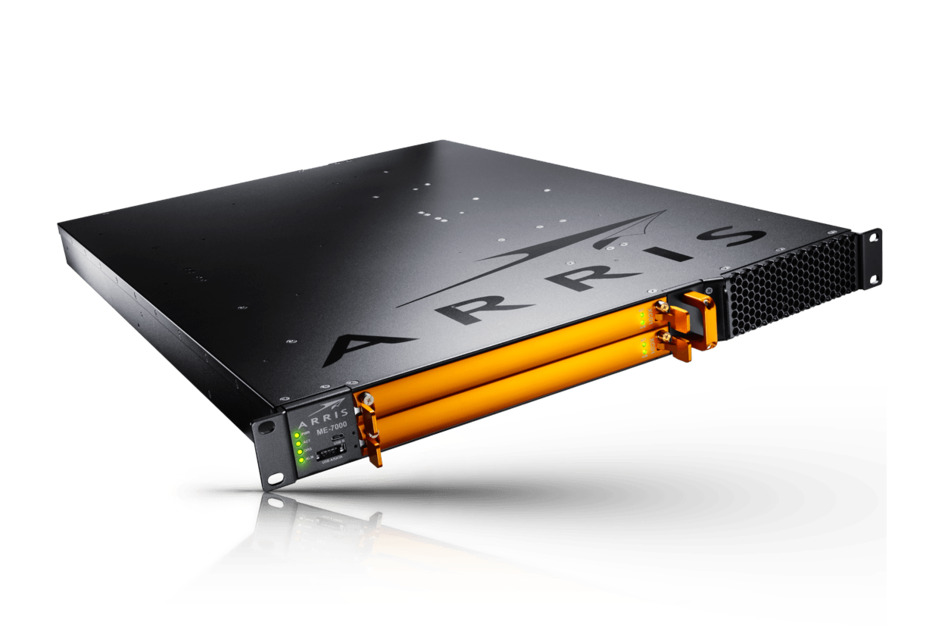

ME-7000 | ME-7000 Converged Compression Platform

Available in:
Asia
Australia/New Zealand
EMEA
Latin America
North America

High density modular multi-video format encoder, transcoder with grooming, splicing and multiplexing

Find a Partner

Specifications

Finish making your selections or clear them to view relevant specifications.

Features and Benefits

The ME-7000 high performance converged compression platform is focused on the efficient delivery of high quality linear broadcast video for IPTV, cable, satellite and OTT applications. It provides multi-codec support of HEVC, MPEG-4 AVC and MPEG-2 encoding. Output formats may be UltraHD 4k, HD, SD or multi-bitrate (MBR) transcoding for ABR multi-screen IP video delivery.

Through the optimum combination of ASIC-based compression technologies coupled with ARRIS video pre-processing software enhancements it provides the best of hardware and software architectures, delivering high-density and high video quality in a future-proof, upgradable platform. The ME-7000 provides a flexible and easily upgradeable system with cost saving low power per channel to provide simultaneous multi-format outputs in any environment.

The ARRIS ME-7000 converged compression platform provides unmatched video compression efficiency for the highest quality video at all bit-rates. Dedicated encoding/transcoding hardware, using the latest compression silicon designs and software techniques, delivers incredible density, saving valuable rack-space and power. Designed for 24x7 operation, the ME-7000 is the best choice for service providers delivering multi-format video services to their subscribers.

Dedicated programmable silicon designed for multi-codec compression
A consistent, high density channel count within a 1RU platform, independent of input or output encoding formats
Dual hot-swappable power supplies for ultimate flexibility of 24 x 7 operation
Flexible configuration options simplify headend architectures, reduce chassis count, and increase reliability
Embedded Element ManagerGUI for easy drag and drop configuration and management along with XML configuration over HTTPS
Reduced capital and operational costs through reduced rack-space, less power and cooling requirements, compared with software based encoders
Modular upgradeability to UHD, HEVC codec support as required

Specifications

Product classification

Regional Availability	Asia \| Australia/New Zealand \| EMEA \| Latin America \| North America
Product Type	Converged compression platform

General Specifications

Audio	Passthrough, encode, transcode and loudness leveling for Dolby Digital, Dolby Digital Plus, MPEG1-L2, HE-AAC and AAC-LC options
Cooling Type	Front to rear airflow
Data	SCTE 35 ad insertion splice points from SCTE104, EIA608/708 closed-captioning, SCTE27, Teletext, OP-47, and DVB subtitling
Grooming/Muxing & Ad Splicing	Performs grooming, MPEG-2, MPEG-4 & HEVC Ad splicing and processing-intensive multiplexing
Modules, quantity	3
Rack Units	1
Video Formats	HD \| HEVC \| MPEG-2 \| MPEG-4 \| SD
Video Inputs	10 GB Ethernet Optical/Copper \| MPEG-2 \| MPEG-4 \| SDI \| 1 GB Ethernet Optical/Copper
Video Outputs	10 GB Ethernet Optical/Copper \| Main plus Picture in Picture \| Multi-Bit Rate (MBR) \| Unicast or Multicast \| 1 GB Ethernet Optical/Copper

Dimensions

Height	44.45 mm \| 1.75 in
Width	447.04 mm \| 17.6 in
Depth	673.1 mm \| 26.5 in

Electrical Specifications

Power Consumption, module 1	260 W
Power Consumption, module 2	330 W
Power Consumption, module 3	400 W
Power Supply, ac	100–240 V
Power Supply, dc	-44 to -60 V

Environmental Specifications

Operating Temperature	0 °C to +50 °C (+32 °F to +122 °F)
Operating Humidity	5%–95%
Operating Altitude	0 meters to 3048 meters (0 feet to 10,000 feet)
Standards Compliance	CAN/CSA \| CB \| CE \| CISPR \| FCC \| GS \| ICES \| REACH \| RoHS Compliant \| UL \| VCCI \| WEEE

Packaging and Weights

Weight, gross

17.69 kg | 39 lb

Regulatory Compliance/Certifications

Agency	Classification
CHINA-ROHS	Below maximum concentration value
REACH-SVHC	Compliant as per SVHC revision on www.commscope.com/ProductCompliance
ROHS	Compliant
UK-ROHS	Compliant
