HCA-H01A

Base Product: HCA

  • Available in:
  • Latin America
  • North America

Fiber Optic Drop Cable Assembly, PRODIGY™ Connector Core with Fullsize converter to Stub, SST Dielectric Cable

Configure Product Variants
Find a Partner
Specifications
Finish making your selections or clear them to view relevant specifications.
BABA-compliant
Build America Buy America (BABA)*

Rely on CommScope for Broadband Equity Access and Development (BEAD) Program and other government funded projects

Broadband for Everyone Program

Product Variants

Configure and display product variants of HCA-H01A by selecting options

Your web browser (Internet Explorer 11 or lower) is out of date and the functions below will not work with Internet Explorer.
Update your browser for more security, speed, functionality and experience on this site.

Update browser

Part Number Cable Assembly Length
No configured items found.
Features and Benefits
  • Cable assembly with the Prodigy™ small form hardened connector
  • Compact and small footprint, space-saving design for high-density environments
  • Compatible with multiple hardened connectors
  • *Product complies with the Build America, Buy America Act (BABAA) requirements of the Infrastructure Investment and Jobs Act of 2021 (Pub. L. 117- 58, §§ 70901-70953), or is the subject of a waiver approved by the Secretary of Commerce or designee. Compliance requirements and waiver applicability vary based on government funding program. Check the laws and regulations for your specific program.

Product Classification

Regional Availability Latin America | North America
Product Type Fiber drop cable assembly
Product Brand PRODIGY™
Product Series HCA
Government Requirements Build America Buy America (BABA) compliant*

General Specifications

Cable Type Dielectric - Flat
Connector A, quantity 1
Color, boot A Black
Color, connector A Black
Interface, Connector A Prodigy® with full size converter installed
Interface, Connector B Unterminated
Jacket Color Black
Location of Manufacturing Catawba, North Carolina
Total Fibers, quantity 1

Dimensions

Cable Assembly Length Range (ft) 1 – 2000
Cable Outer Diameter 4.5 x 8.0 mm (0.18 x 0.31 in)

Ordering Tree

Click on image to enlarge.

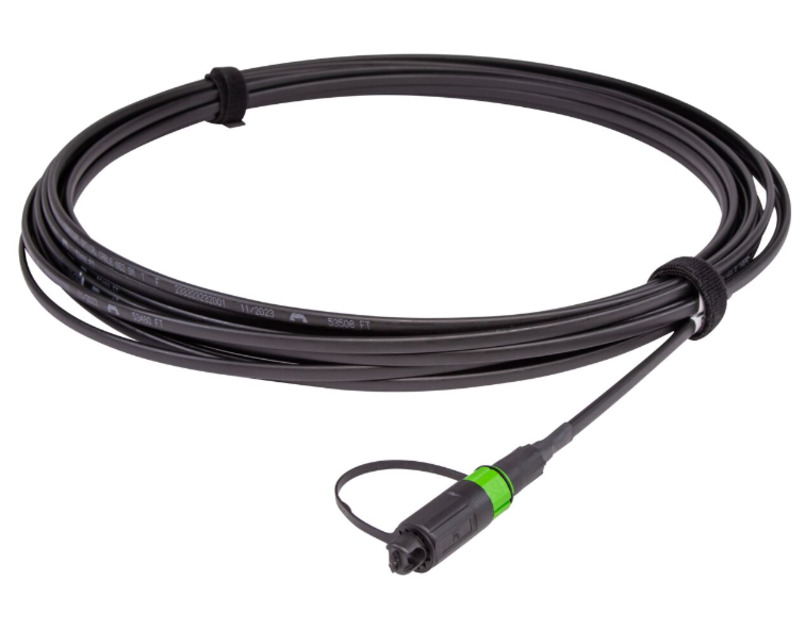

Representative Image

Click on image to enlarge.

Mechanical Specifications

Minimum Bend Radius, loaded 90 mm | 3.543 in
Minimum Bend Radius, unloaded 81 mm | 3.189 in
Tensile Load, long term, maximum 400 N | 89.924 lbf
Tensile Load, short term, maximum 1334 N | 299.895 lbf
Cable Crush Resistance, maximum 10 N/mm | 57.101 lb/in
Dust Cap Pulling Force, minimum 445 N | 100.040 lbf
Mating Durability, maximum 0.5 dB @ 100 cycles

Optical Specifications

Fiber Mode Singlemode
Fiber Type G.657.A2/B2
Insertion Loss, maximum, connector A 0.4 dB
Insertion Loss, typical 0.15 dB
Return Loss, minimum, connector A 65 dB

Environmental Specifications

Installation temperature -30 °C to +70 °C (-22 °F to +158 °F)
Operating Temperature -40 °C to +70 °C (-40 °F to +158 °F)
Storage Temperature -40 °C to +75 °C (-40 °F to +167 °F)
Environmental Space Outdoor
Jacket UV Resistance UV stabilized
Qualification Standards Telcordia GR-3120-CORE

Packaging and Weights

Cable weight 39 kg/km | 26.207 lb/kft

Product Classification

Regional Availability Latin America | North America
Product Type Fiber drop cable assembly
Product Brand PRODIGY™
Product Series HCA
Government Requirements Build America Buy America (BABA) compliant*

General Specifications

Cable Type Dielectric - Flat
Connector A, quantity 1
Color, boot A Black
Color, connector A Black
Interface, Connector A Prodigy® with full size converter installed
Interface, Connector B Unterminated
Jacket Color Black
Location of Manufacturing Catawba, North Carolina
Total Fibers, quantity 1

Dimensions

Cable Assembly Length Range (ft) 1 – 2000
Cable Outer Diameter 4.5 x 8.0 mm (0.18 x 0.31 in)

Mechanical Specifications

Minimum Bend Radius, loaded 90 mm | 3.543 in
Minimum Bend Radius, unloaded 81 mm | 3.189 in
Tensile Load, long term, maximum 400 N | 89.924 lbf
Tensile Load, short term, maximum 1334 N | 299.895 lbf
Cable Crush Resistance, maximum 10 N/mm | 57.101 lb/in
Dust Cap Pulling Force, minimum 445 N | 100.040 lbf
Mating Durability, maximum 0.5 dB @ 100 cycles

Optical Specifications

Fiber Mode Singlemode
Fiber Type G.657.A2/B2
Insertion Loss, maximum, connector A 0.4 dB
Insertion Loss, typical 0.15 dB
Return Loss, minimum, connector A 65 dB

Environmental Specifications

Installation temperature -30 °C to +70 °C (-22 °F to +158 °F)
Operating Temperature -40 °C to +70 °C (-40 °F to +158 °F)
Storage Temperature -40 °C to +75 °C (-40 °F to +167 °F)
Environmental Space Outdoor
Jacket UV Resistance UV stabilized
Qualification Standards Telcordia GR-3120-CORE

Packaging and Weights

Cable weight 39 kg/km | 26.207 lb/kft
