760253831 | SMB-2P-KJ-003
- Available in:
- Asia
- Australia/New Zealand
- EMEA
- Latin America
- North America

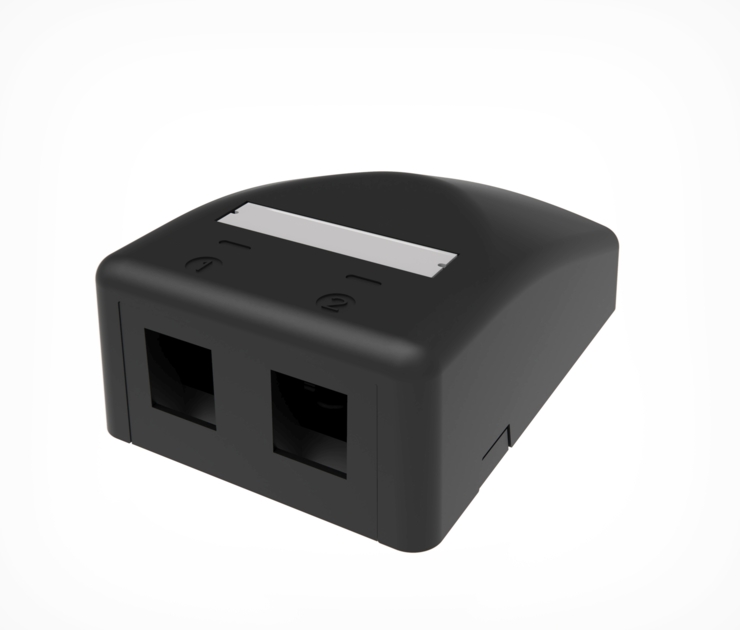

Surface Mount Box, Keystone, 2 port, Black
Specifications
Product Classification
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
| Portfolio | CommScope® |
| Product Type | Surface mount box |
General Specifications
| Application | Used with KJ Series outlets | Used with KJX-6A jacks |
| Color | Pro white |
| Mounting | Surface |
| Outlet Orientation | Flat |
| Port Marking Type | Label |
| Total Ports, quantity | 2 |
Dimensions
| Height | 38 mm | 1.496 in |
| Width | 73.3 mm | 2.886 in |
| Depth | 102.2 mm | 4.024 in |
Material Specifications
| Material Type | Polycarbonate |
Environmental Specifications
| Environmental Space | Indoor |
| Flammability Rating | UL 1863 |
| Safety Standard | UL | cUL |
Packaging and Weights
| Packaging quantity | 1 |
Product Classification
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
| Portfolio | CommScope® |
| Product Type | Surface mount box |
General Specifications
| Application | Used with KJ Series outlets | Used with KJX-6A jacks |
| Color | Pro white |
| Mounting | Surface |
| Outlet Orientation | Flat |
| Port Marking Type | Label |
| Total Ports, quantity | 2 |
Dimensions
| Height | 38 mm | 1.496 in |
| Width | 73.3 mm | 2.886 in |
| Depth | 102.2 mm | 4.024 in |
Material Specifications
| Material Type | Polycarbonate |
Environmental Specifications
| Environmental Space | Indoor |
| Flammability Rating | UL 1863 |
| Safety Standard | UL | cUL |
Packaging and Weights
| Packaging quantity | 1 |
